Rear Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Refer to: Intake Manifold .
-

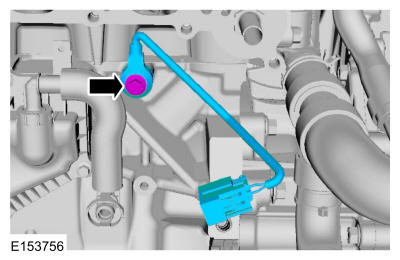

NOTE: Note the orientation of the KS.NOTE: Make sure that the components are installed to the position noted before removal.
Torque: 177 lb.in (20 Nm)
