Mass Air Flow (MAF) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

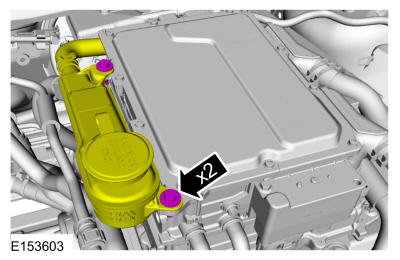

  2. Torque: 71 lb.in (8 Nm)
    GFD198175Courtesy of FORD MOTOR COMPANY

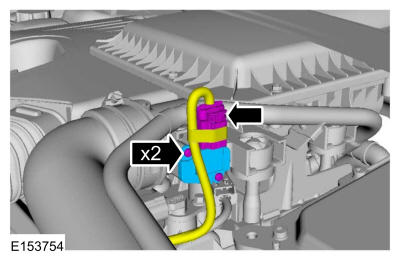

  3. Torque: 18 lb.in (2 Nm)
    GFD198176Courtesy of FORD MOTOR COMPANY
