Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Jacking and Lifting - Overview .
  2. Refer to: Air Cleaner .
  3. GFD198172Courtesy of FORD MOTOR COMPANY

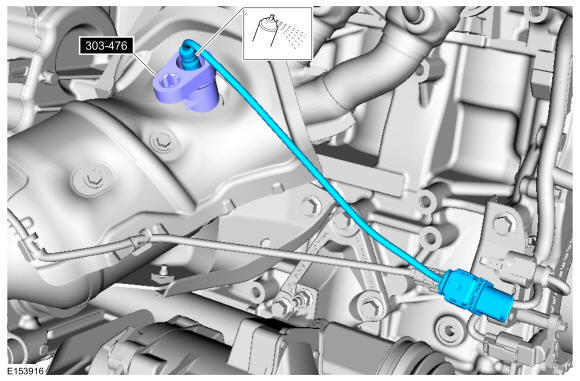

  4. Apply the specified chemical with a spray can.

    Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft ® Penetrating and Lock Lubricant / XL-1

    GFD198173Courtesy of FORD MOTOR COMPANY
