Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different variant/trim than selected.

- Apply the specified lubricant to the specified component.
  Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2

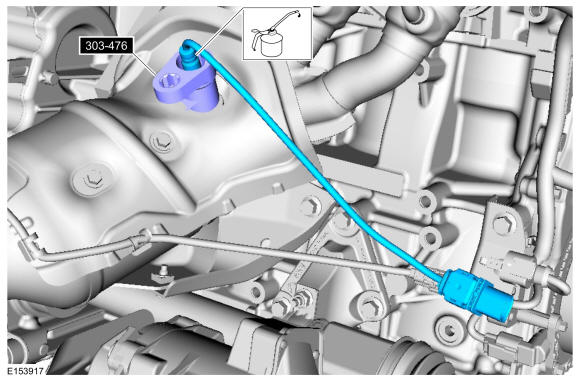

- Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
- Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formula in the chart below.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Refer to: Air Cleaner .
