Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Air Cleaner .

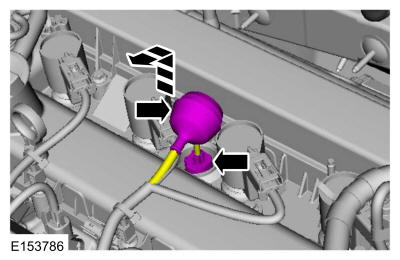

  2. GFD198168Courtesy of FORD MOTOR COMPANY

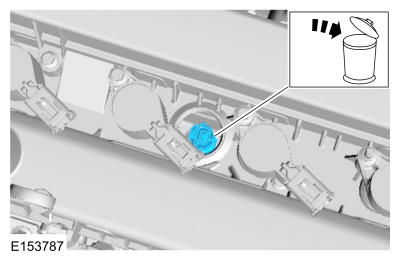

  3. Torque: 106 lb.in (12 Nm)
GFD198169Courtesy of FORD MOTOR COMPANY
