Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Refer to: Air Cleaner .

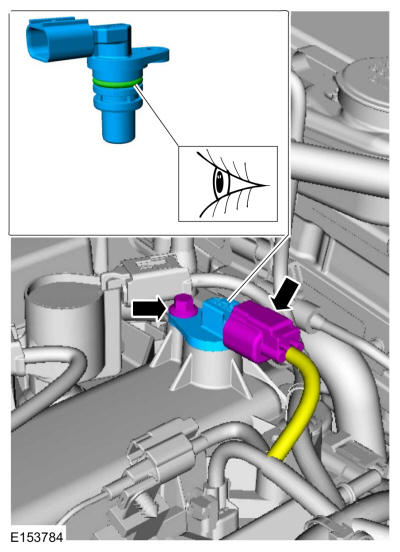

  3. GFD198156Courtesy of FORD MOTOR COMPANY
