Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply the specified lubricant to the specified component.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque: 53 lb.in (6 Nm)

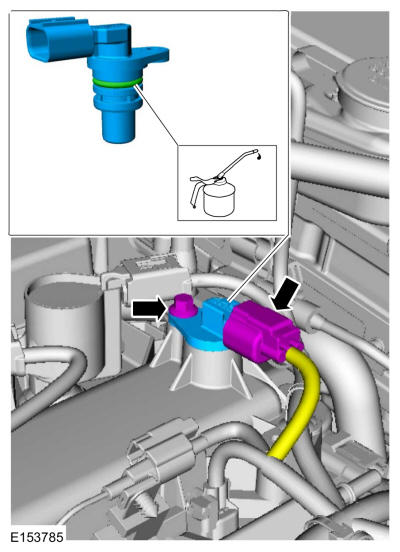

    GFD198157Courtesy of FORD MOTOR COMPANY
  2. Refer to: Air Cleaner .
