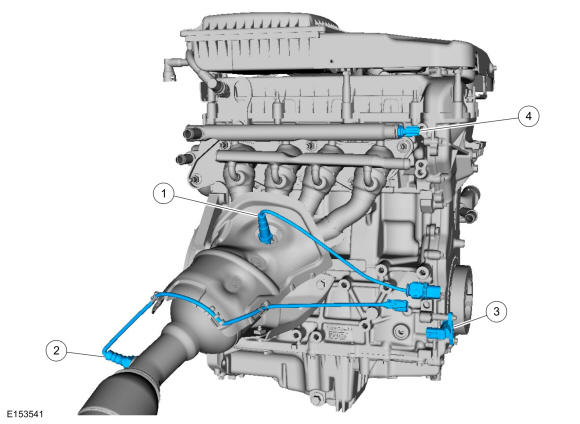

RH Engine Sensor Locations - HEV
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
9Y460 |
Heated oxygen sensor (HO2S) |
| 2 |
9G444 |
Catalyst monitor sensor |
| 3 |
6C315 |
Crankshaft position (CKP) sensor |
| 4 |
12A648 |
Engine coolant temperature (ECT) Sensor (ECT2) |
