Brake Booster: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

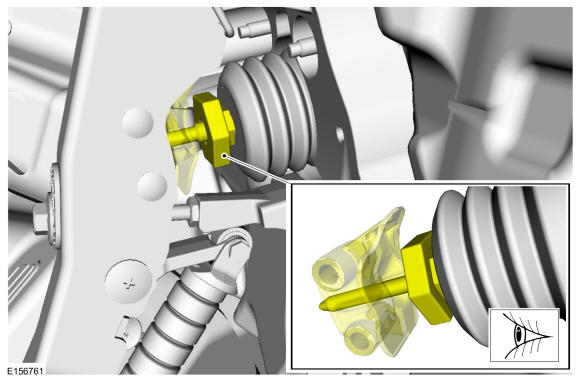

NOTE: Make sure the brake booster rod is positioned correctly into the clevis block.

NOTE: Apply the brake pedal several times to verify correct operation.

Courtesy of FORD MOTOR COMPANY
Using the diagnostic scan tool, carry out the Regenerative Brake System Calibration routine.
