Variable Camshaft Timing Bank 1 Solenoid 2 (VCT12) (2.7L)
Variable Camshaft Timing Bank 1 Solenoid 2 (VCT12) (2.7L)

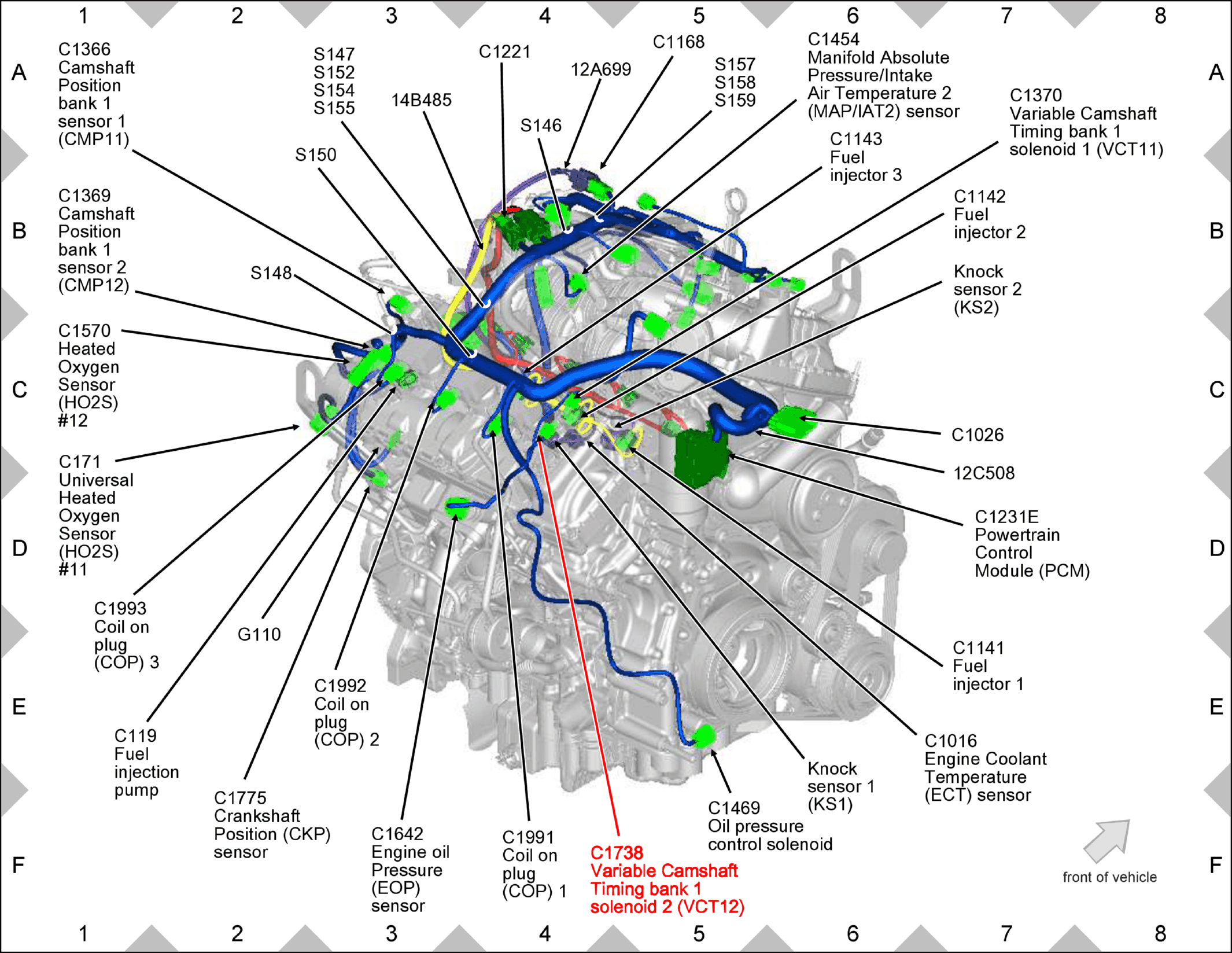

Fig 1: Variable Camshaft Timing Bank 1 Solenoid 2 (VCT12) (2.7L) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
