Variable Camshaft Timing 12 (VCT12) Solenoid (1.5L)

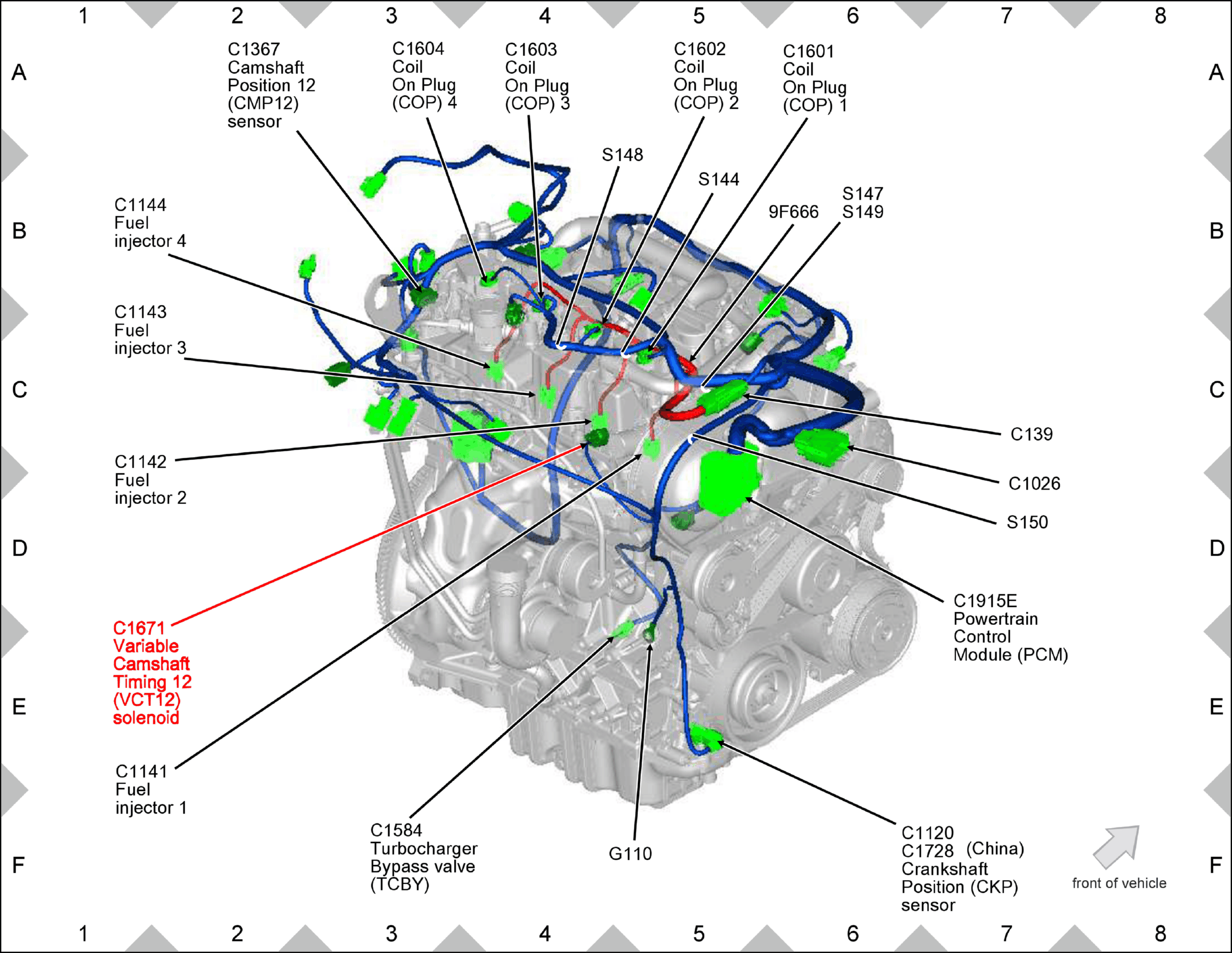

Fig 1: Variable Camshaft Timing 12 (VCT12) Solenoid (1.5L) Components Location

GFDW78940

Courtesy of FORD MOTOR COMPANY
