OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Universal Heated Oxygen Sensor (Ho2S) #11 (1.5L)
Universal Heated Oxygen Sensor (Ho2S) #11 (1.5L)

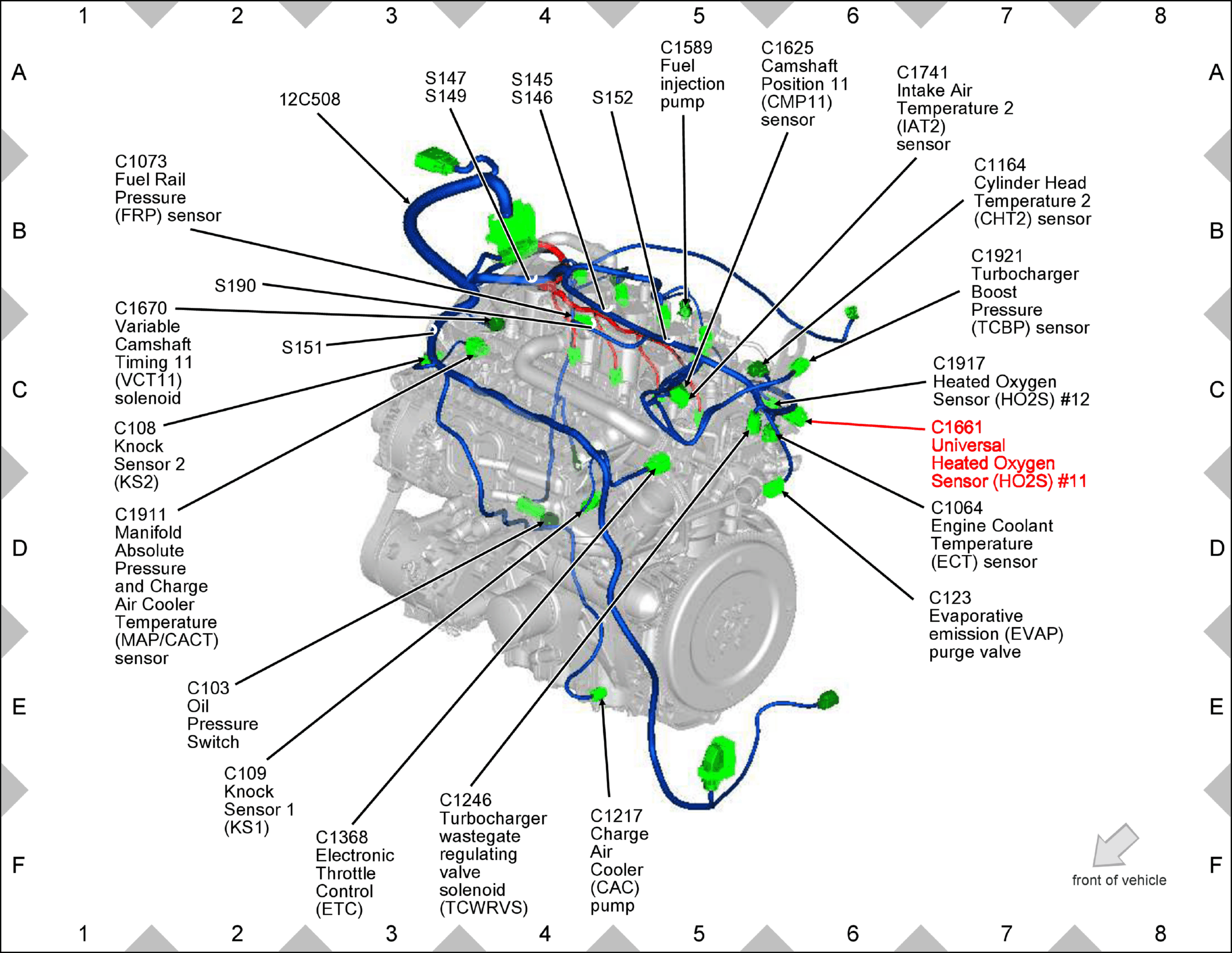

Fig 1: Universal Heated Oxygen Sensor (HO2S) #11 (1.5L) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
