Turbocharger WASTEGATE Regulating Valve Solenoid (TCWRVS) (1.5L)

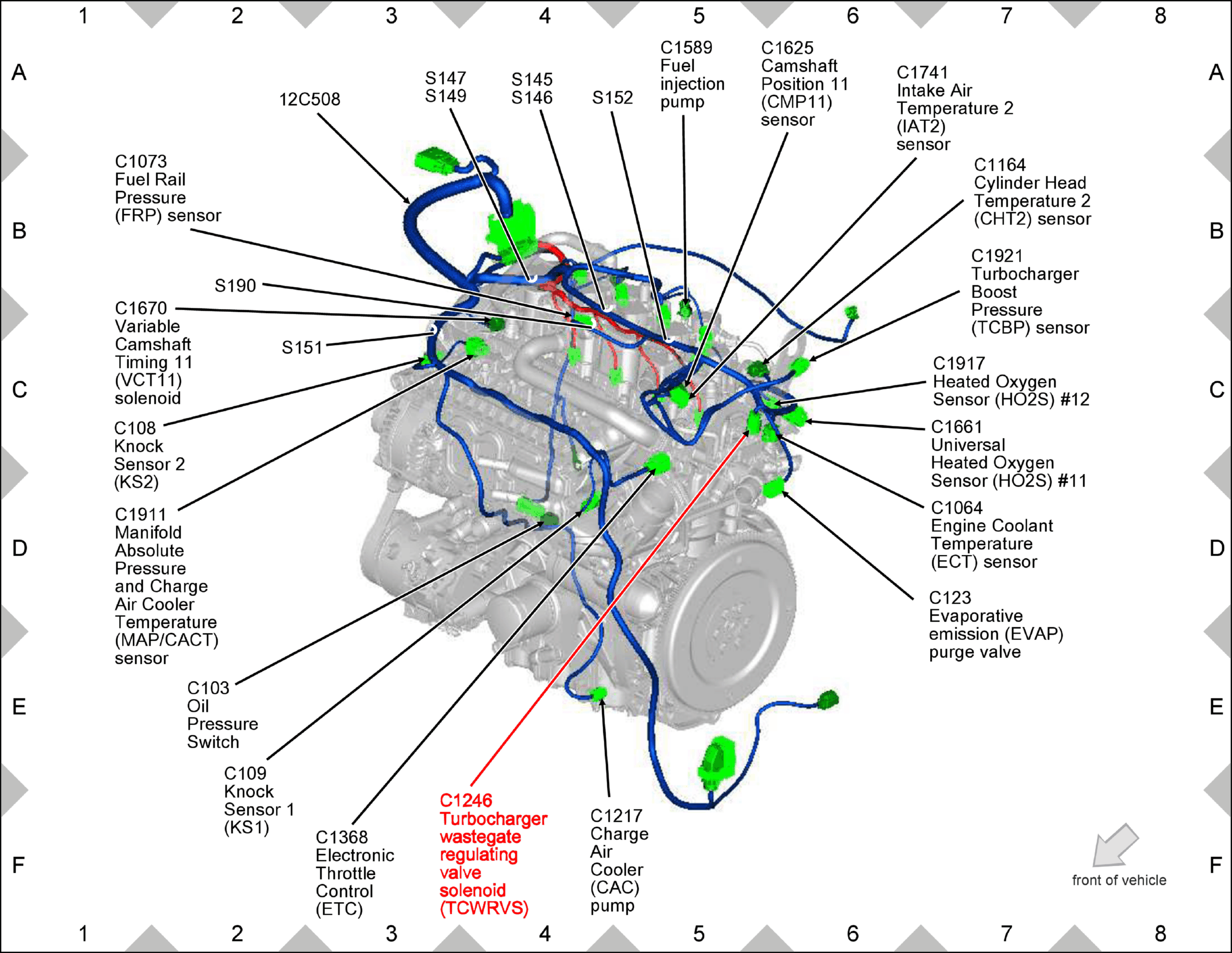

Fig 1: Turbocharger Wastegate Regulating Valve Solenoid (TCWRVS) (1.5L) Components Location

GFDW78918

Courtesy of FORD MOTOR COMPANY
