Turbocharger Bypass Valve (TCBY) (2.7L)

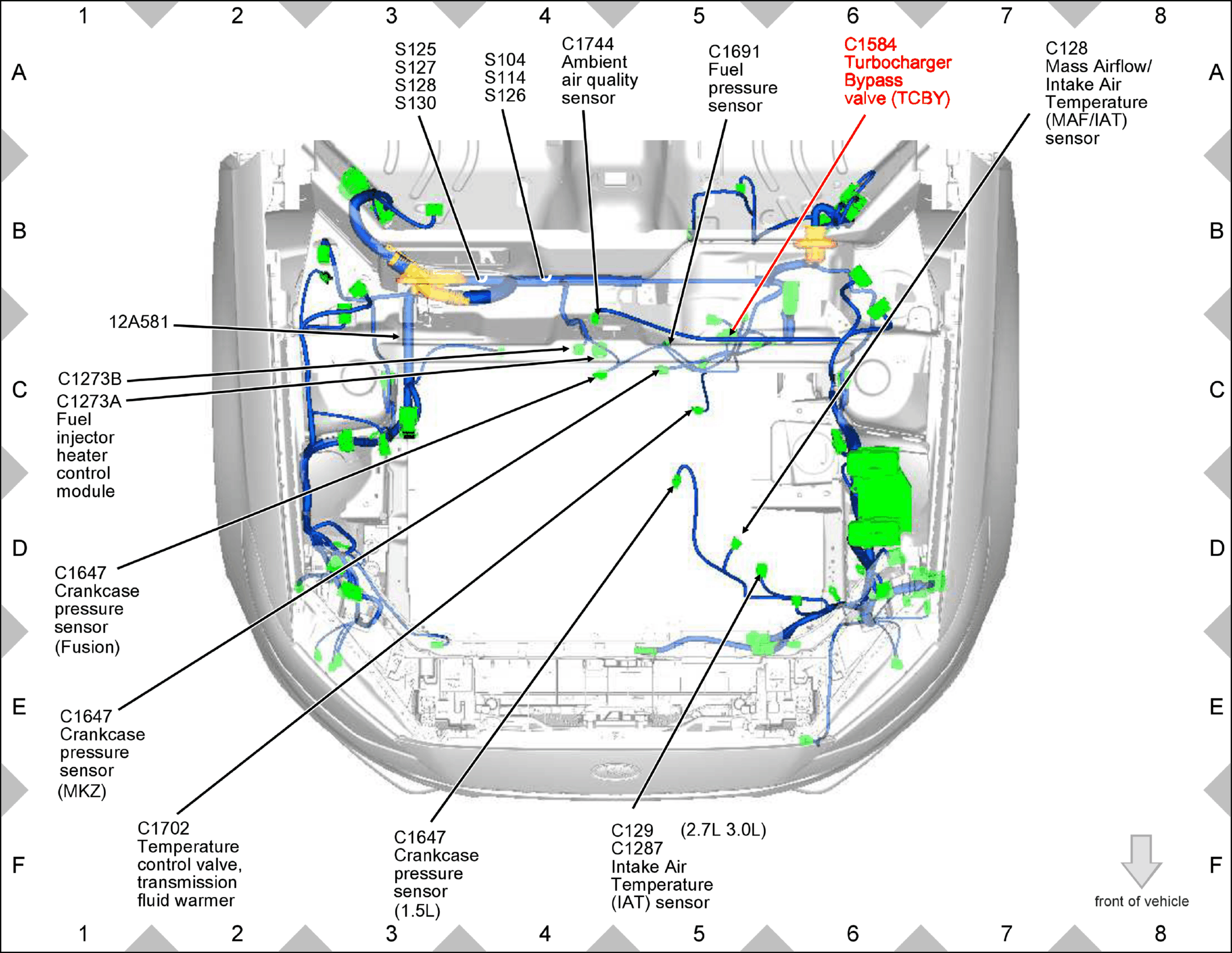

Fig 1: Turbocharger Bypass valve (TCBY) (2.7L) Components Location

GFDW78915

Courtesy of FORD MOTOR COMPANY
