Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor (2.0L)

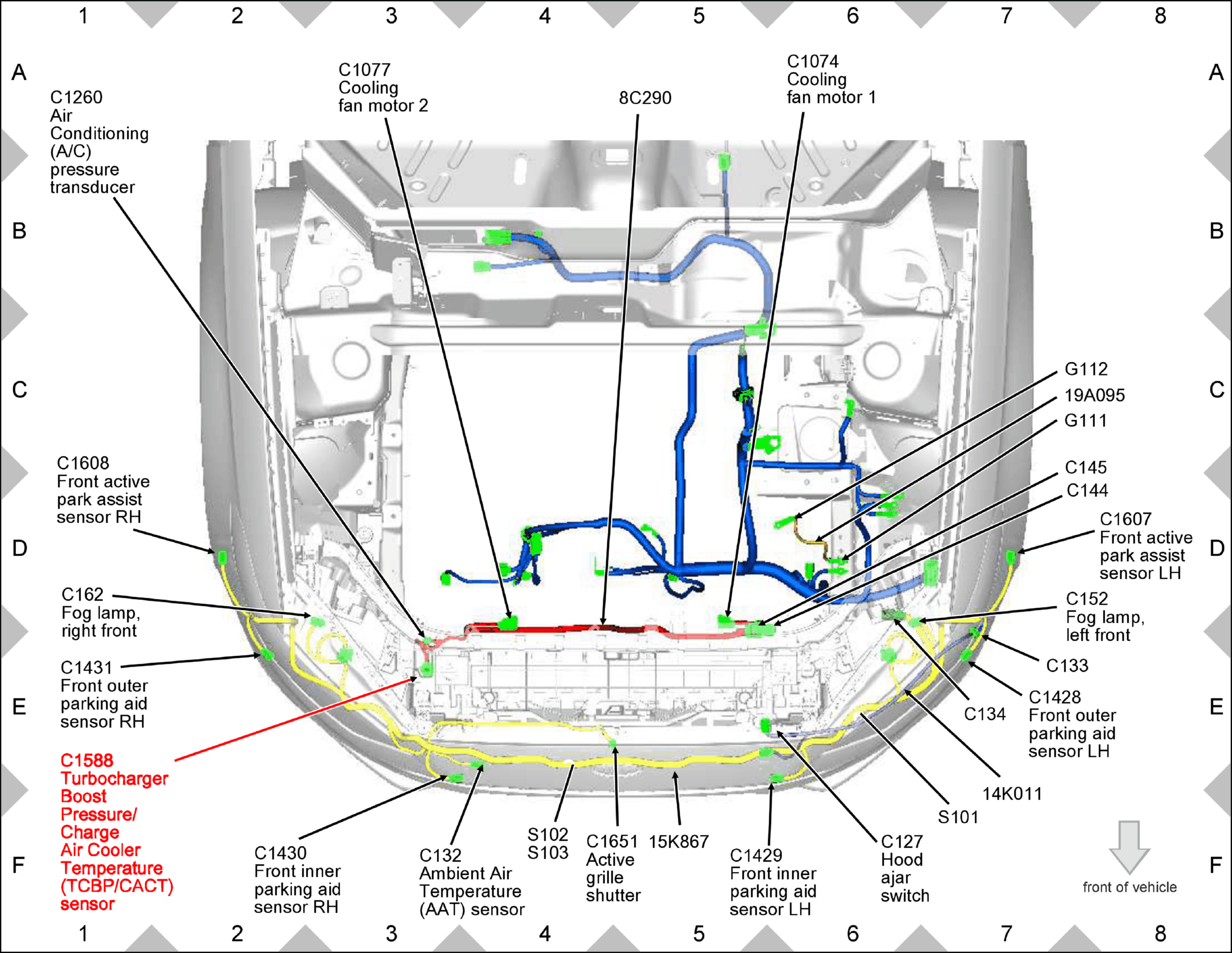

Fig 1: Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) sensor (2.0L) Components Location
GFDW78912Courtesy of FORD MOTOR COMPANY
