Temperature Control Valve, Transmission Fluid Warmer

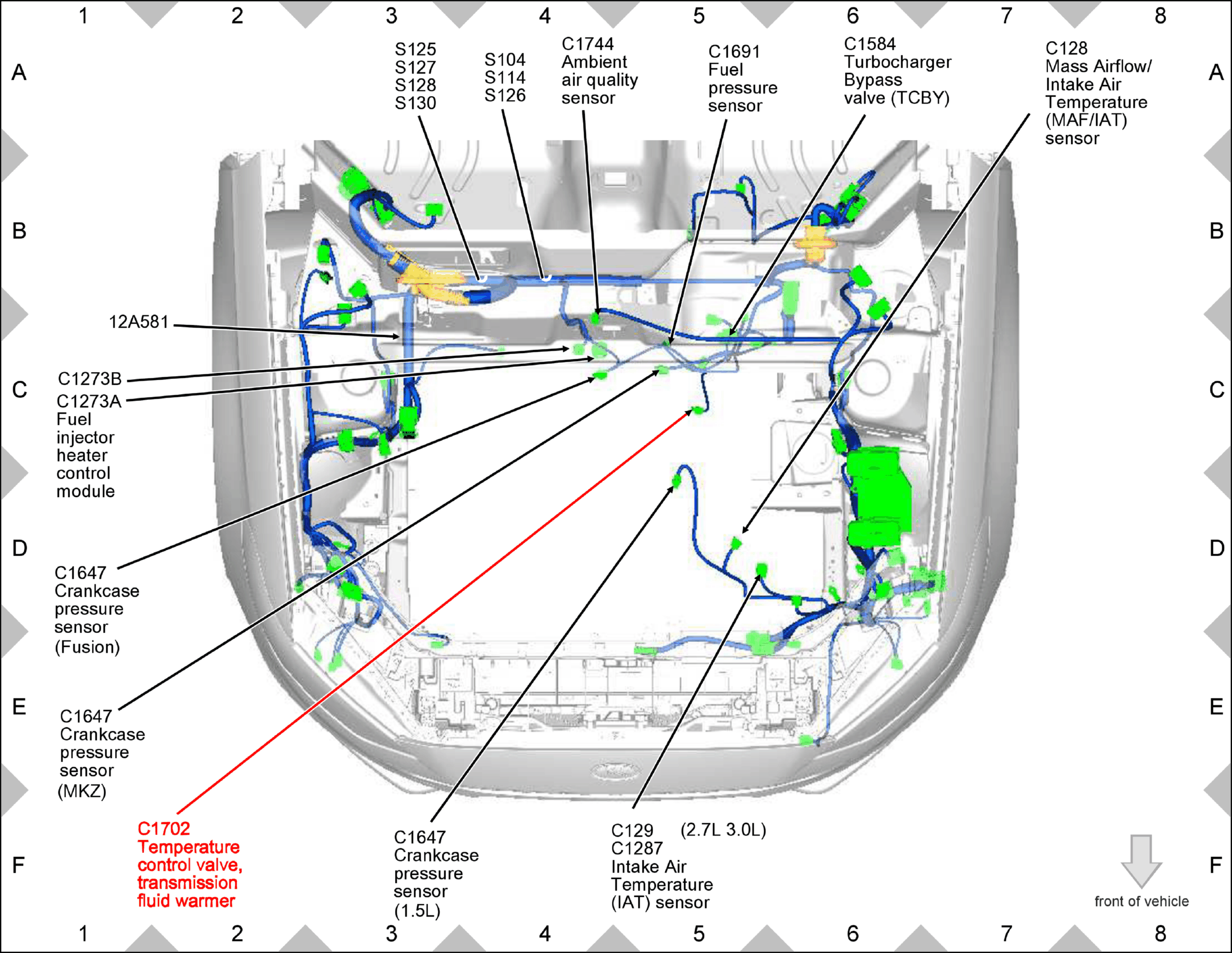

Fig 1: Temperature Control Valve, Transmission Fluid Warmer Components Location

GFDW78902

Courtesy of FORD MOTOR COMPANY
