Steering Column Control Module (SCCM)

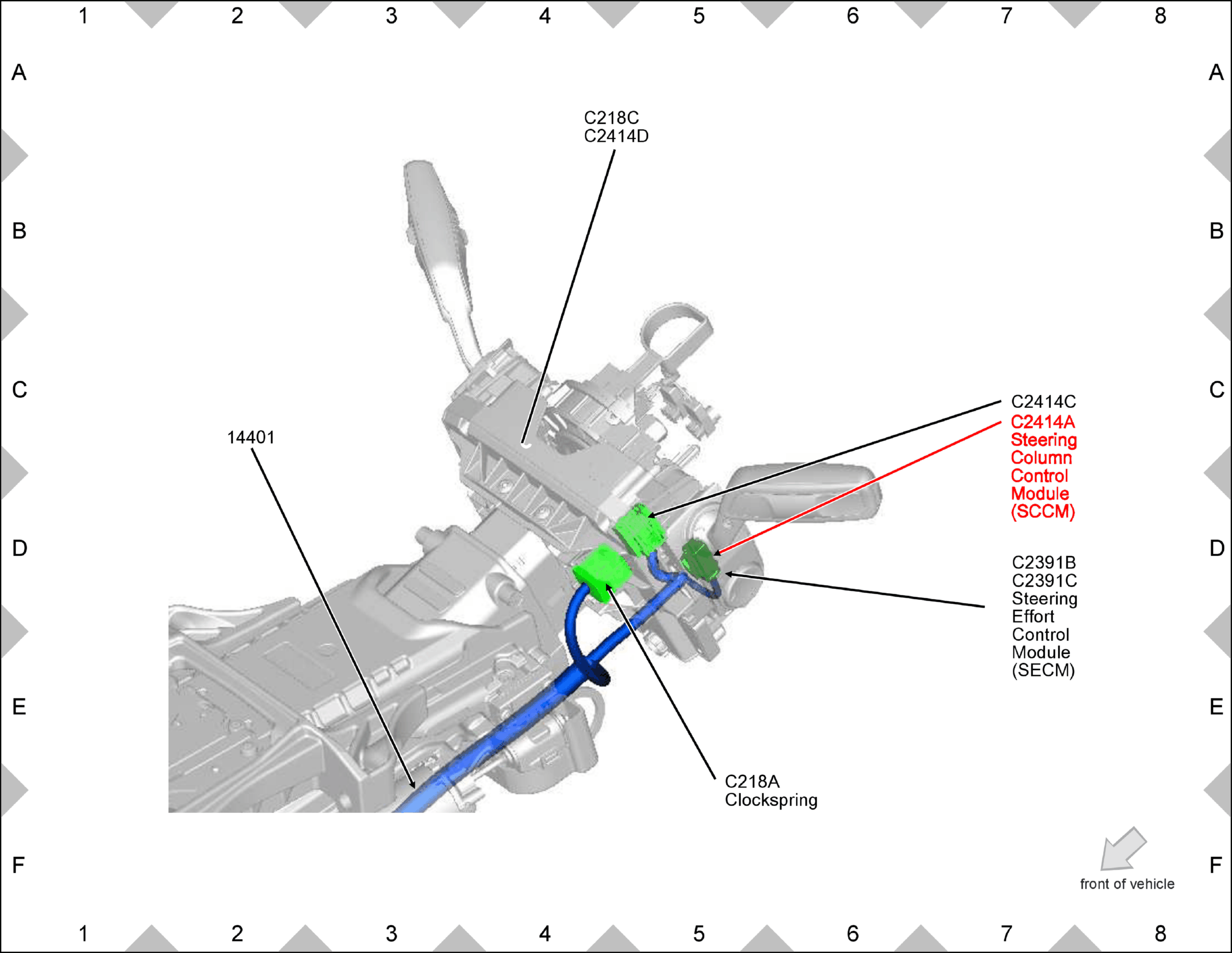

Fig 1: Steering Column Control Module (SCCM) Components Location

GFDW78882

Courtesy of FORD MOTOR COMPANY
