Side Impact Sensor LH C-Pillar
Side Impact Sensor LH C-Pillar

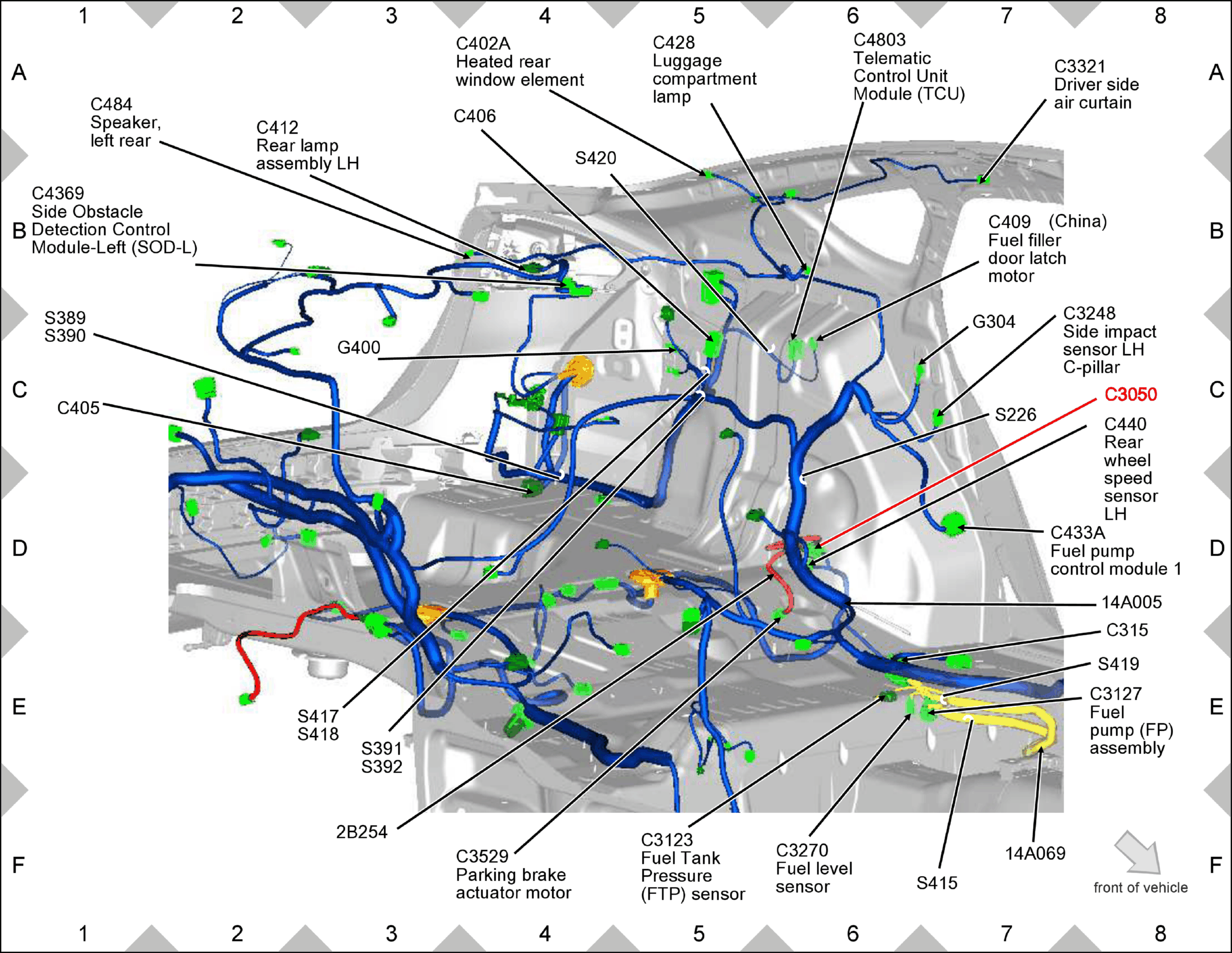

Fig 1: Side Impact Sensor LH C-pillar (Ford) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
