Seat Position Sensor, Right Front

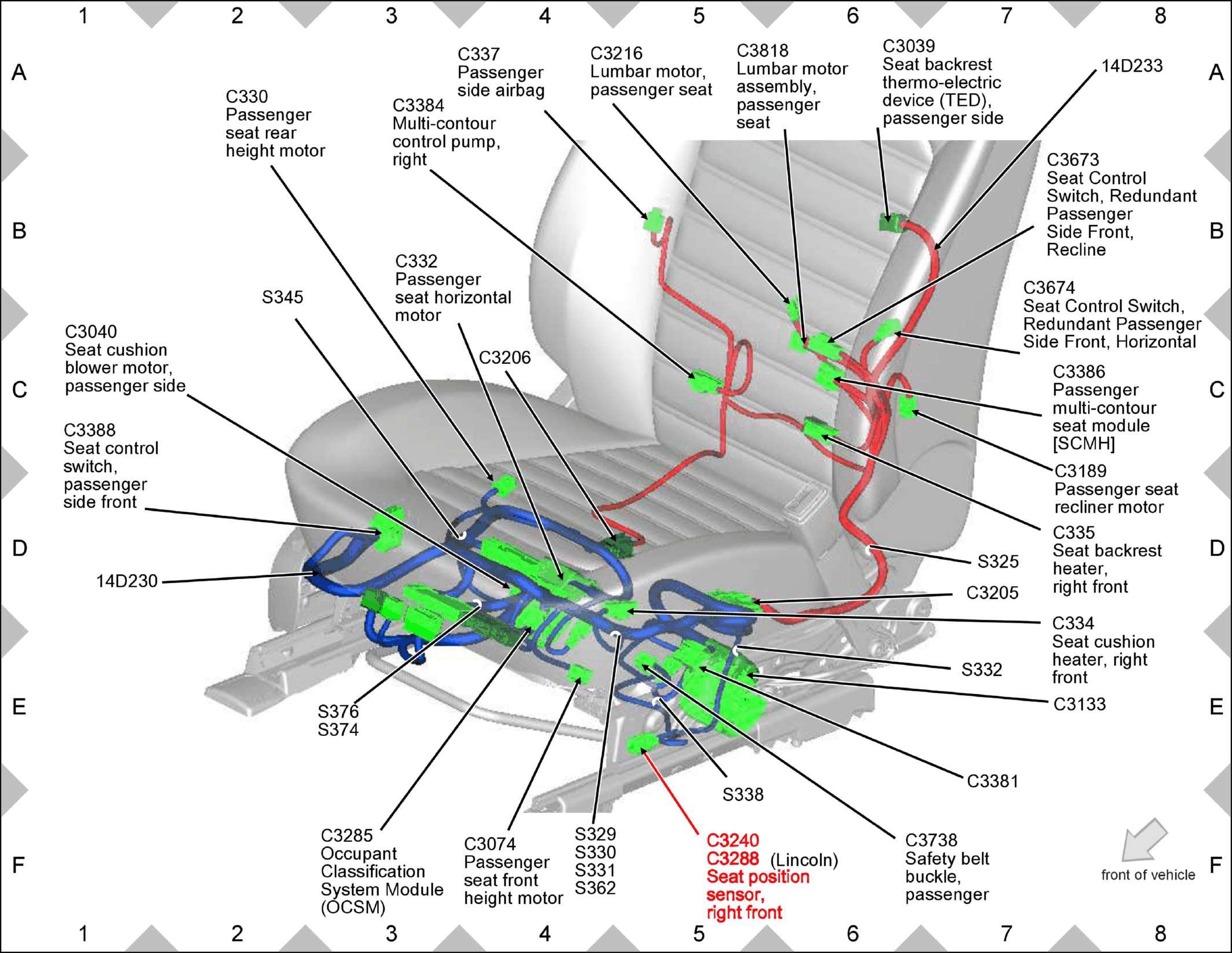

Fig 1: Seat Position Sensor, Right Front Components Location

GFDW78862

Courtesy of FORD MOTOR COMPANY
