Seat Backrest THERMO-Electric Device (Ted), Passenger Side

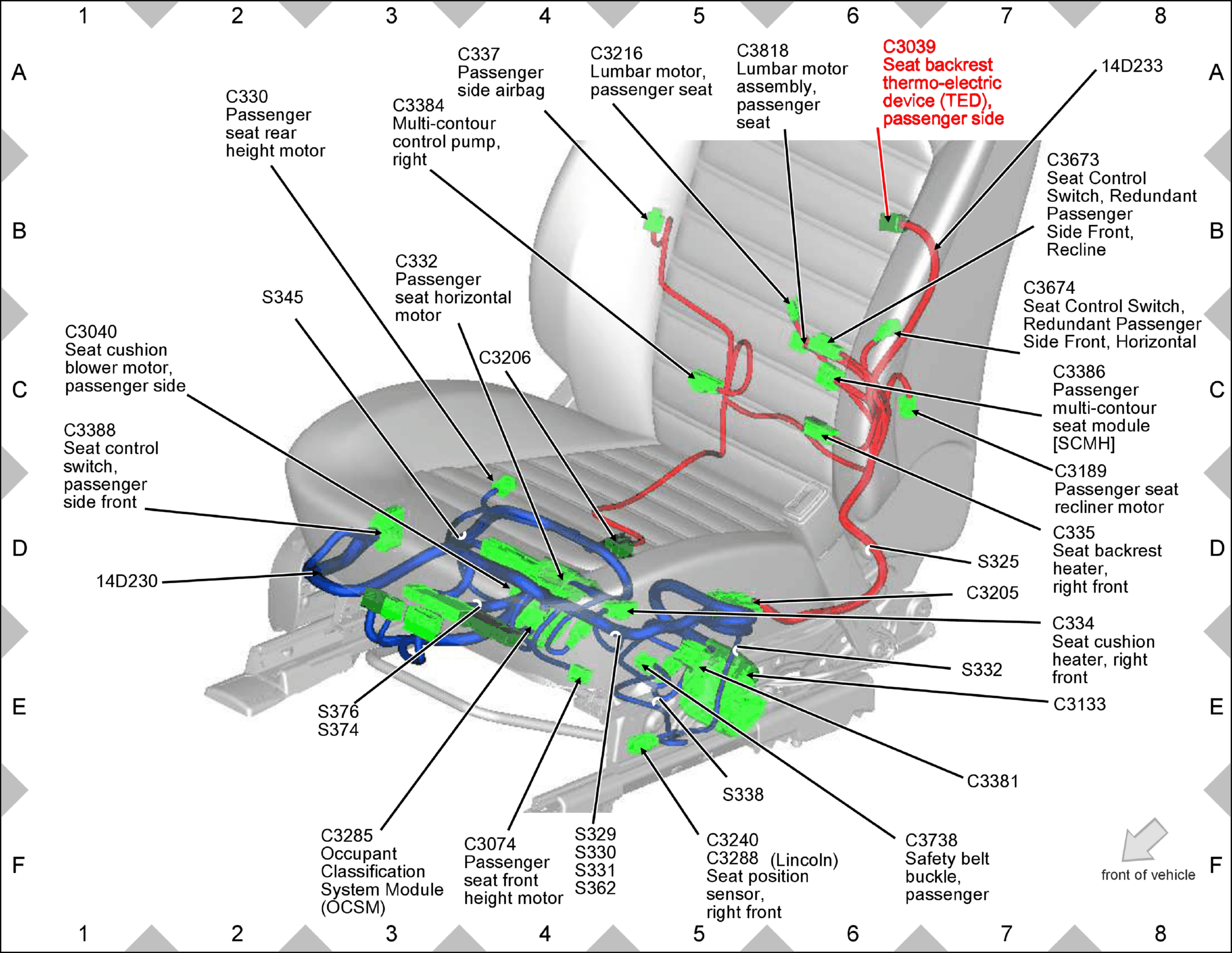

Fig 1: Seat Backrest Thermo-Electric Device (TED), Passenger Side Components Location

GFDW78850

Courtesy of FORD MOTOR COMPANY
