Seat Backrest THERMO-Electric Device (Ted), Driver Seat

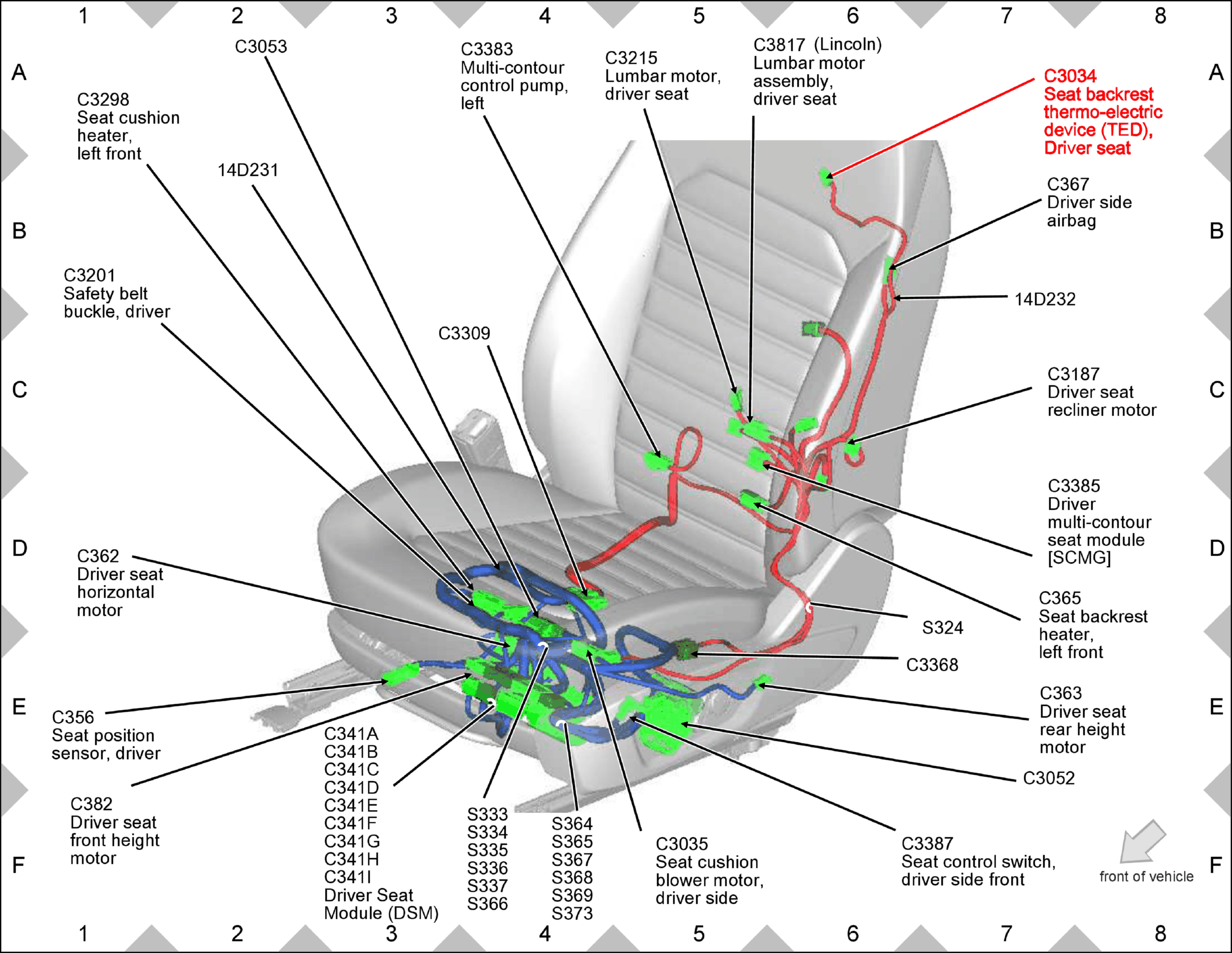

Fig 1: Seat Backrest Thermo-Electric Device (TED), Driver seat Components Location

GFDW78849

Courtesy of FORD MOTOR COMPANY
