Seat Backrest Heater, Left Front

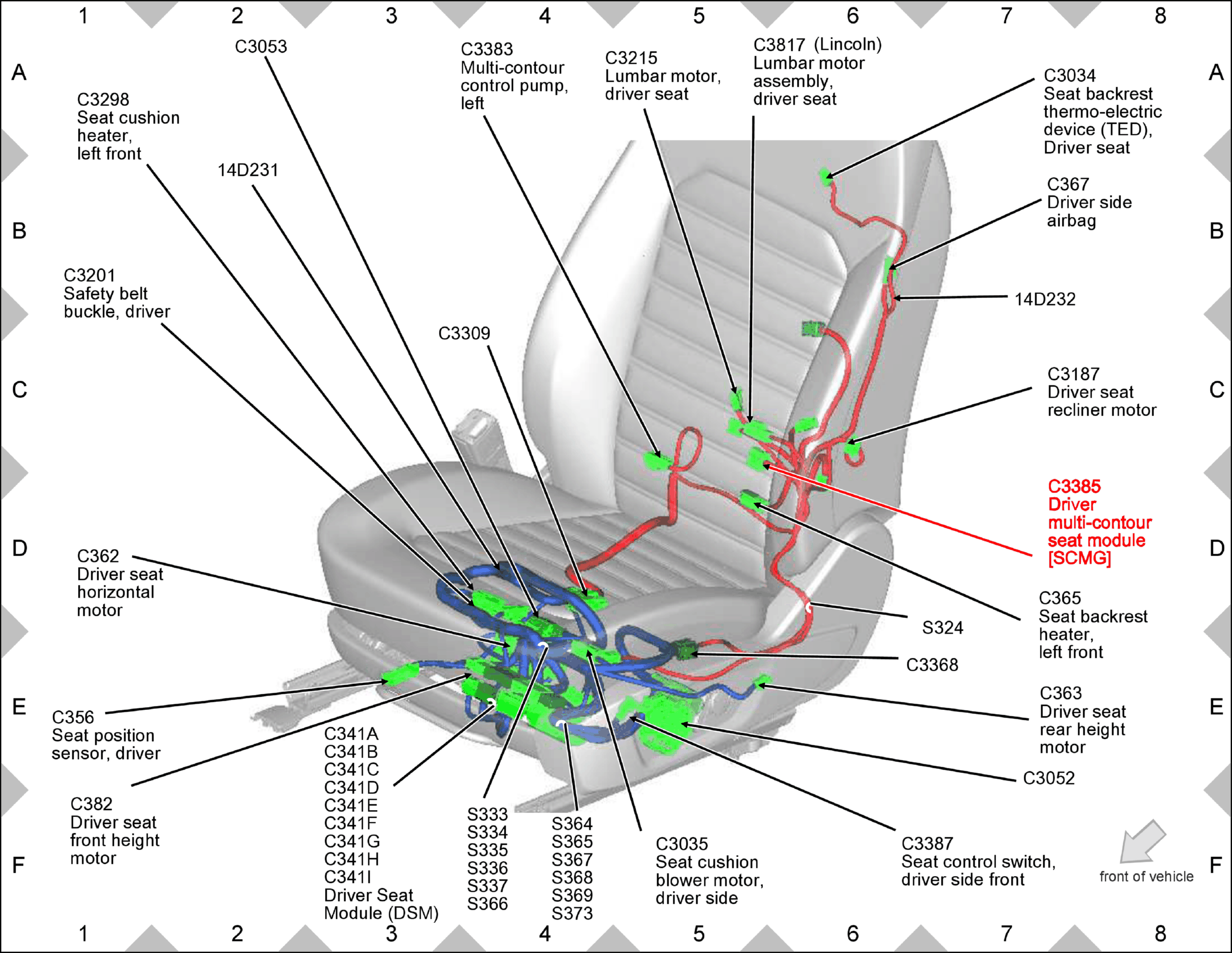

Fig 1: Seat Backrest Heater, Left Front Components Location

GFDW78845

Courtesy of FORD MOTOR COMPANY
