Safety Belt Buckle Assembly, 2ND Row

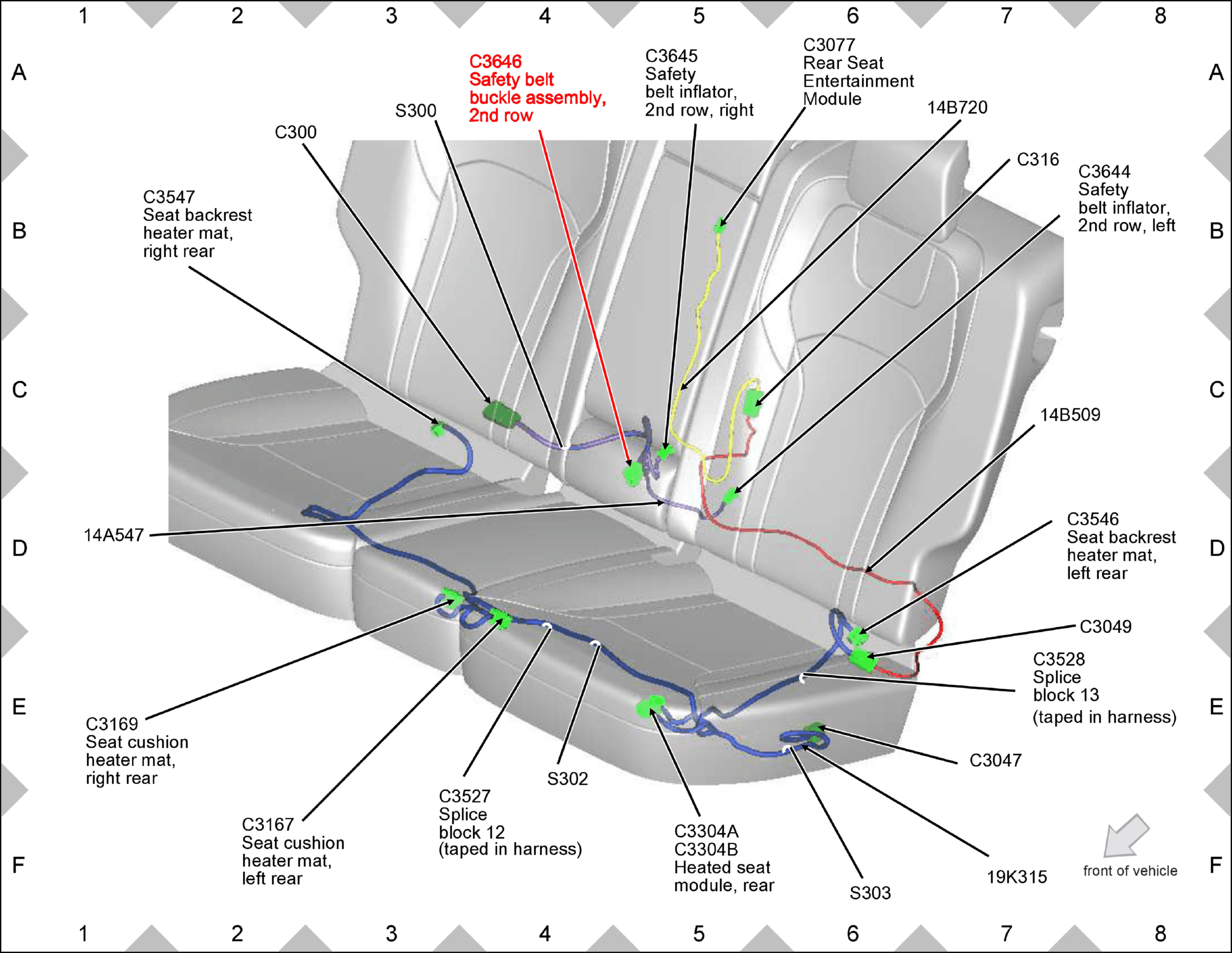

Fig 1: Safety Belt Buckle Assembly, 2nd Row Components Location

GFDW78840

Courtesy of FORD MOTOR COMPANY
