OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Roof Opening Panel Module
Roof Opening Panel Module

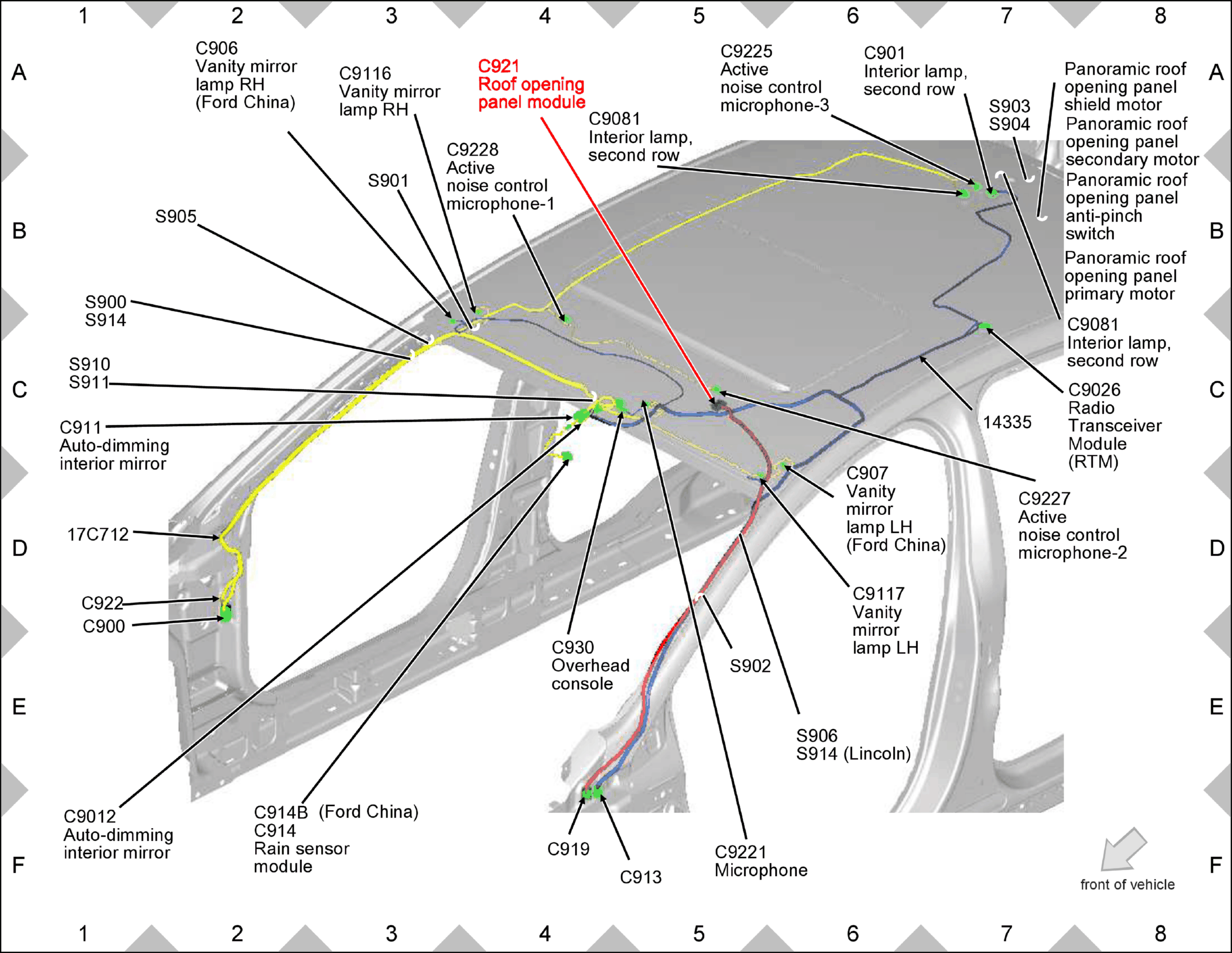

Fig 1: Roof Opening Panel Module Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
