OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Reversing Lamp RH (Low Series)
Reversing Lamp RH (Low Series)

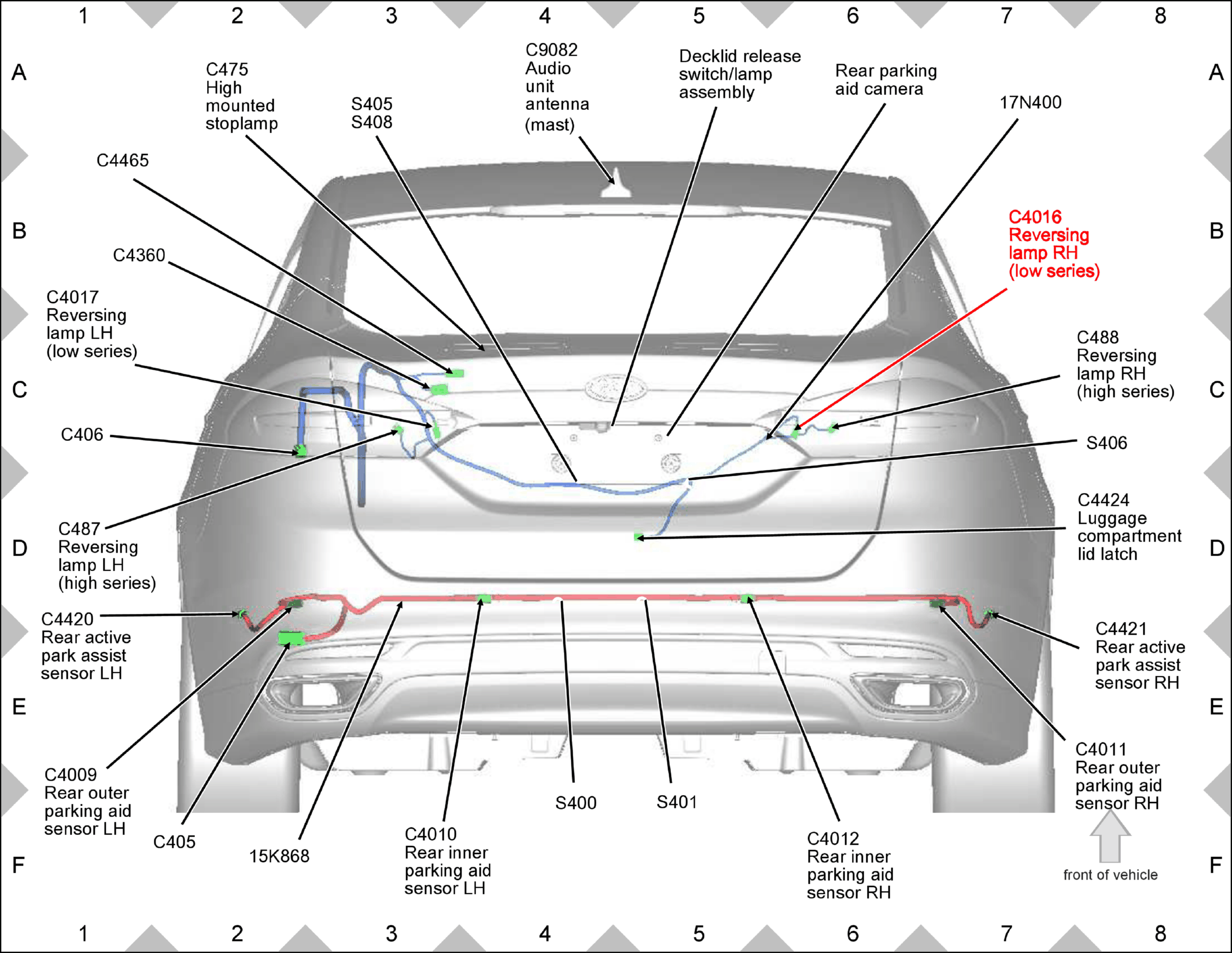

Fig 1: Reversing Lamp RH (low Series) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
