OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Rear Shock Absorber LH
Rear Shock Absorber LH

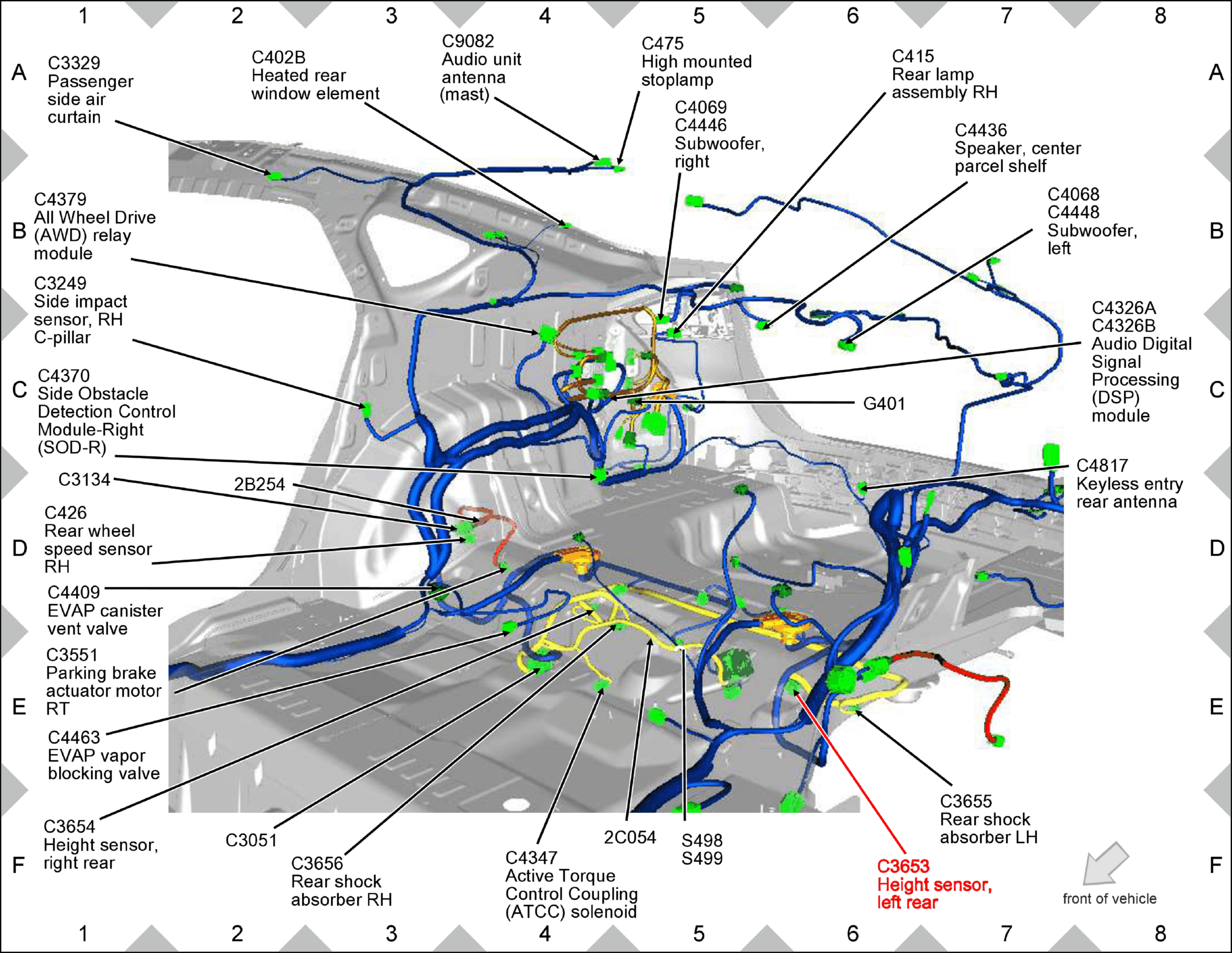

Fig 1: Rear Shock Absorber LH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
