OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Rear Passenger Power Outlet Socket
Rear Passenger Power Outlet Socket

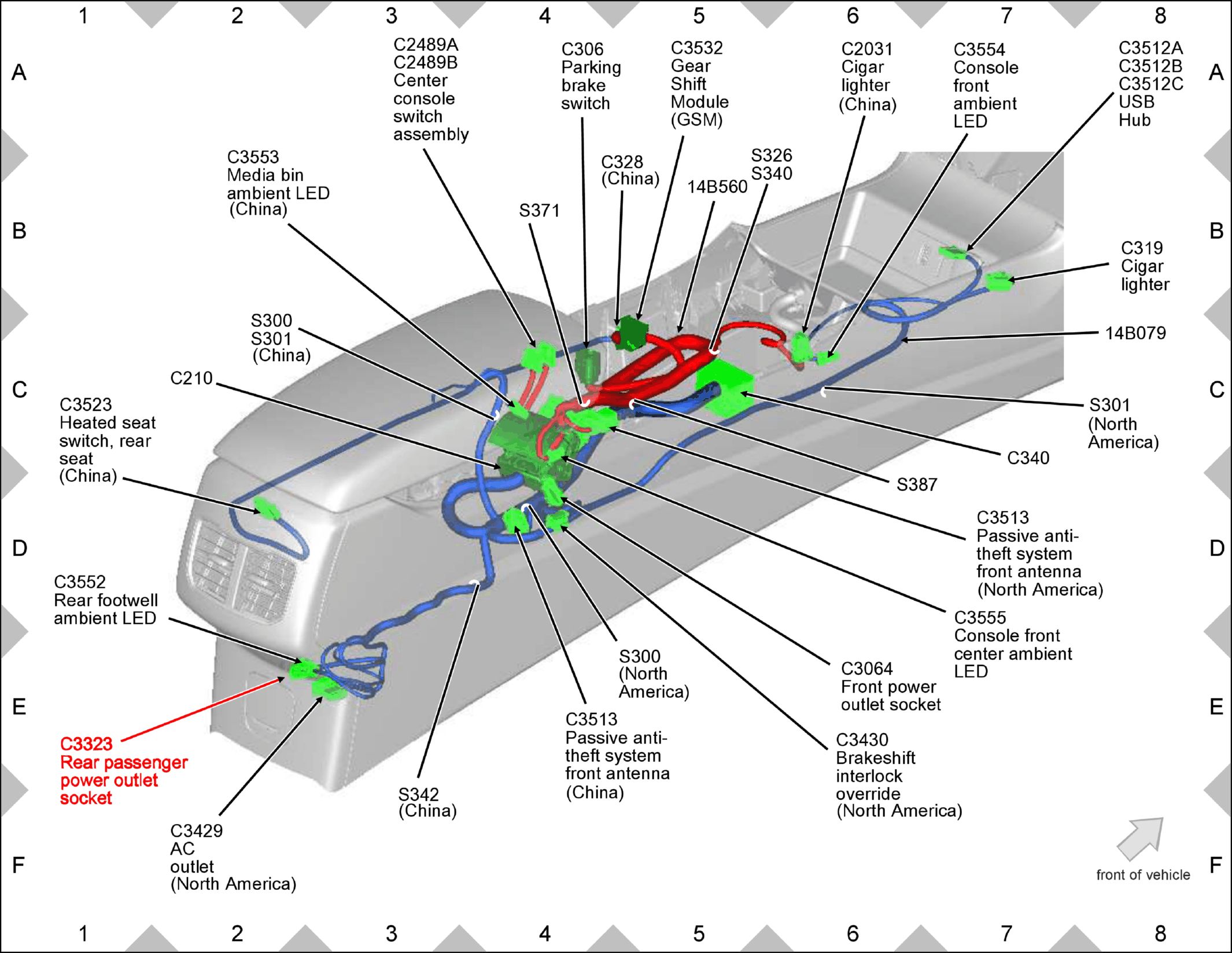

Fig 1: Rear Passenger Power Outlet Socket Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
