Rear Door Module (RDM) LH

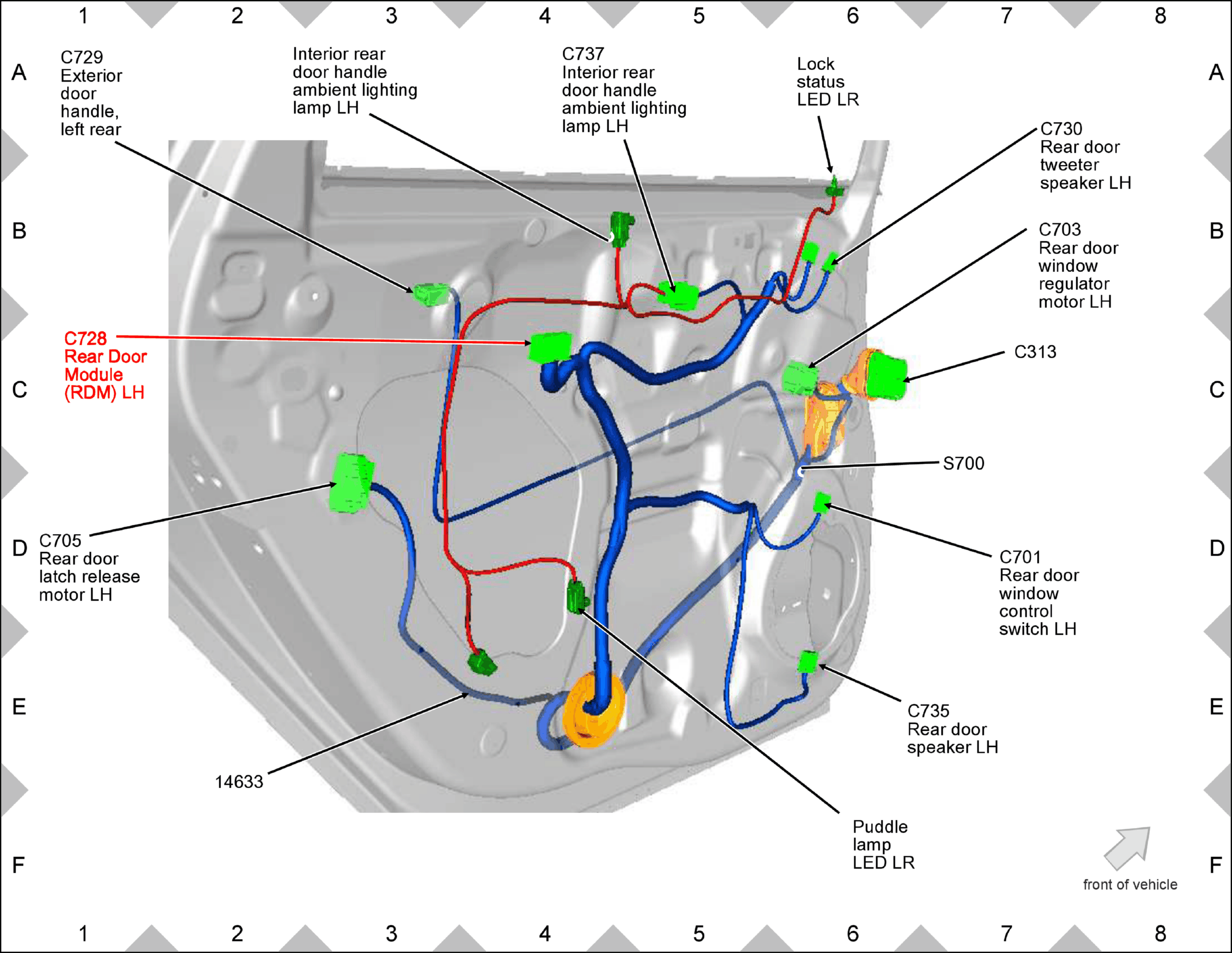

Fig 1: Rear Door Module (RDM) LH Components Location

GFDW78781

Courtesy of FORD MOTOR COMPANY
