Powertrain Control Module (Pcm) (2.0L)

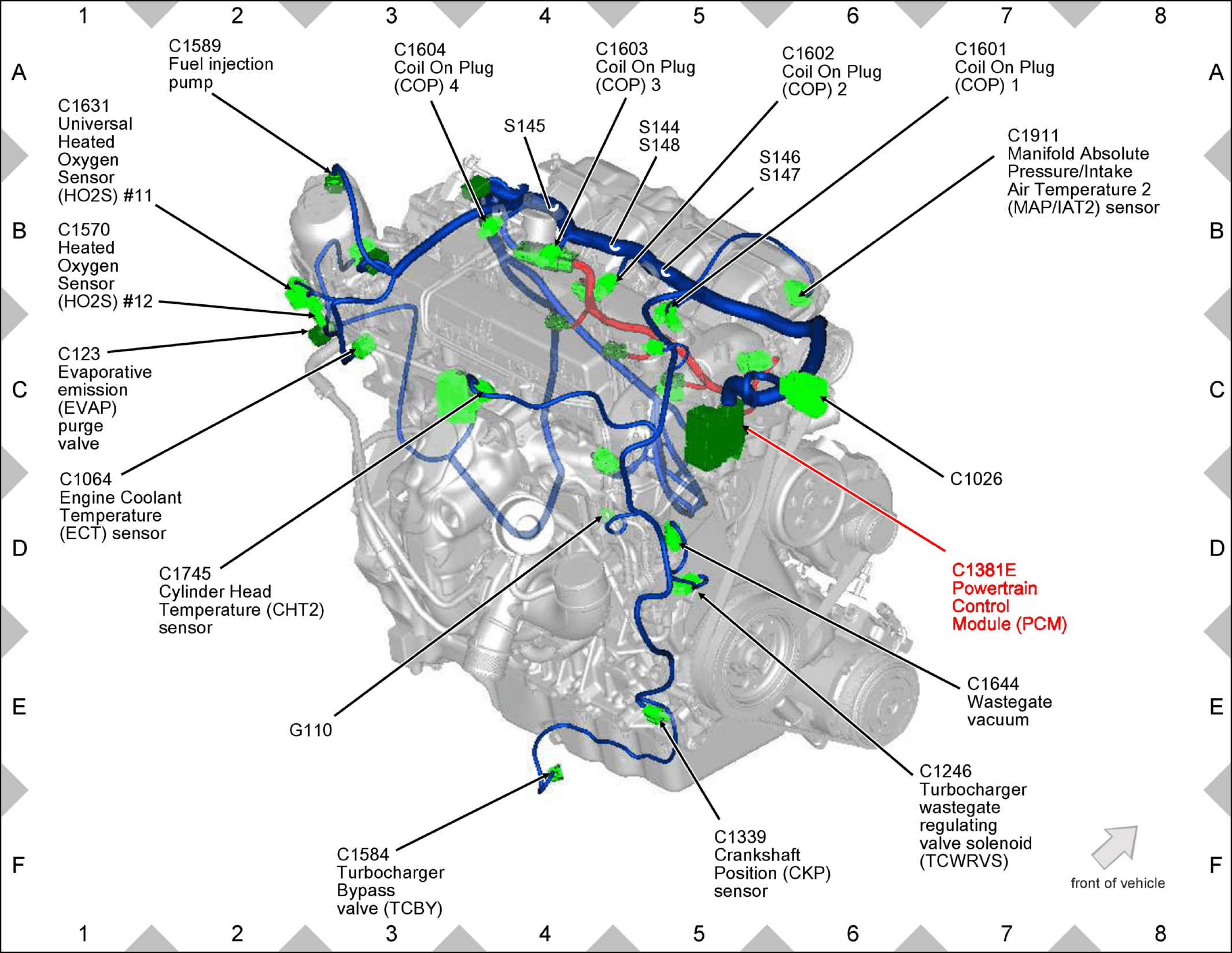

Fig 1: Powertrain Control Module (PCM) (2.0L) Components Location

GFDW78757

Courtesy of FORD MOTOR COMPANY
