Powertrain Control Module (Pcm) (1.5L)

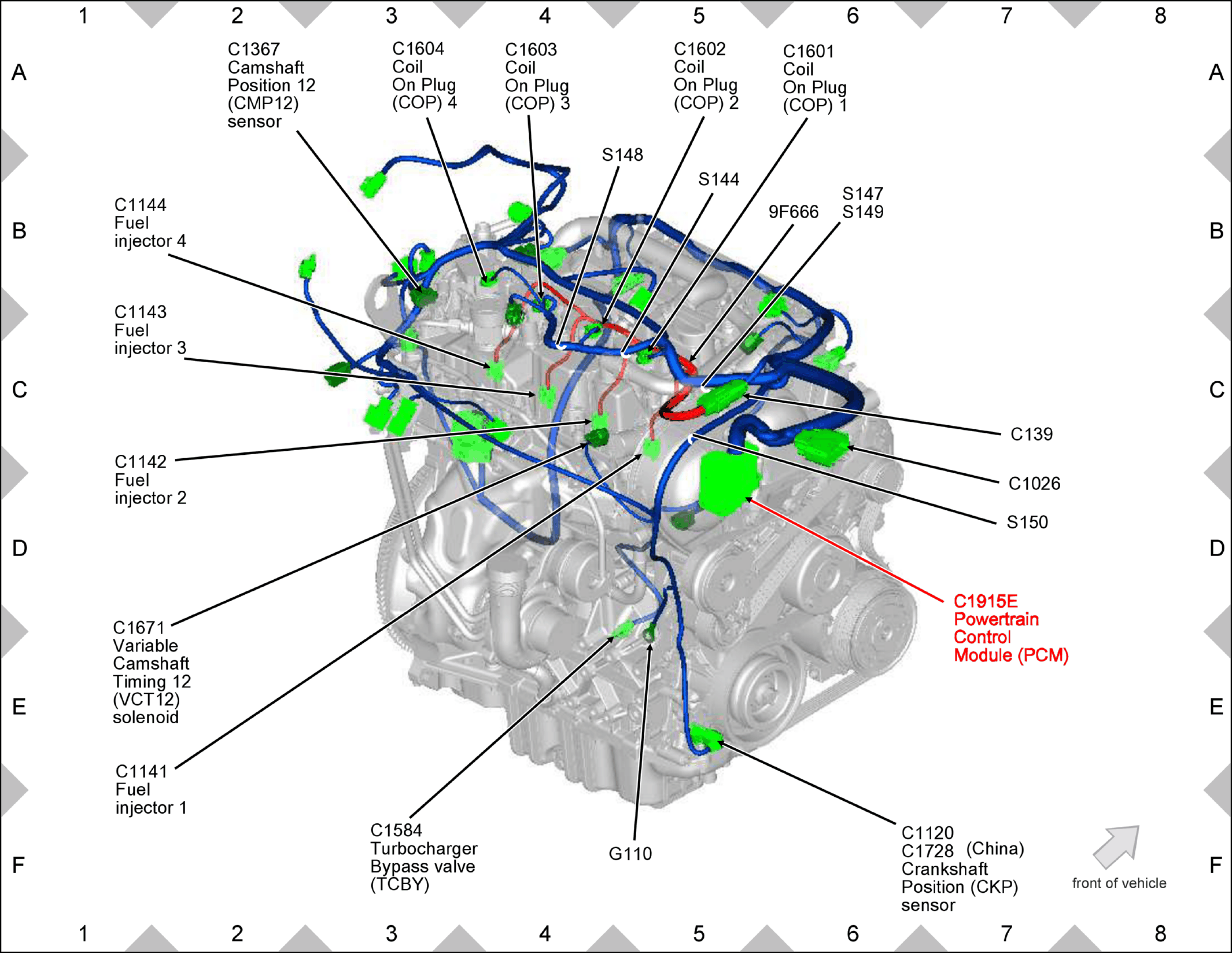

Fig 1: Powertrain Control Module (PCM) (1.5L) Components Location

GFDW78756

Courtesy of FORD MOTOR COMPANY
