Passive Anti- Theft System Front Antenna

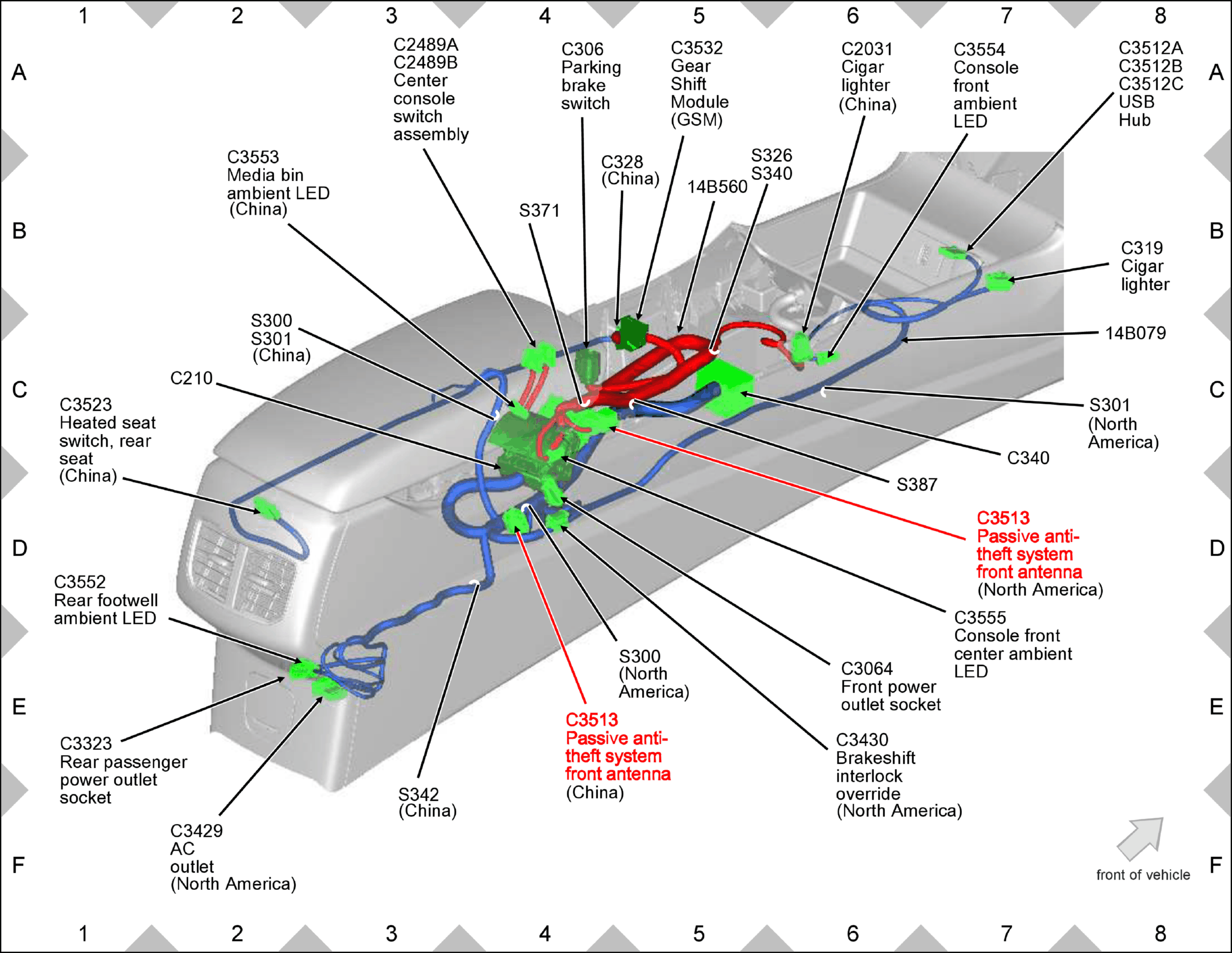

Fig 1: Passive Anti- Theft System Front Antenna Components Location

GFDW78754

Courtesy of FORD MOTOR COMPANY
