Passenger Side Air Curtain

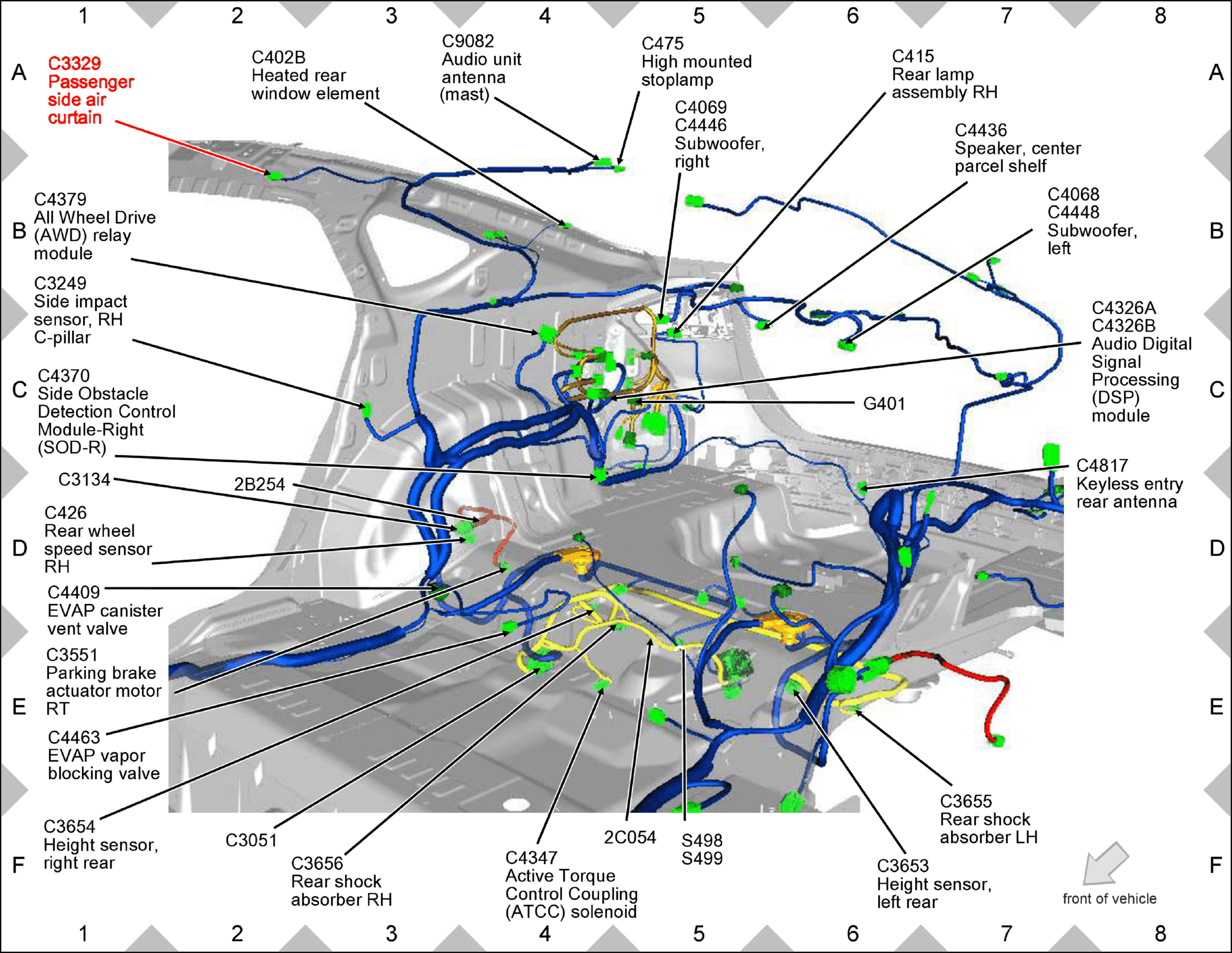

Fig 1: Passenger Side Air Curtain Components Location

GFDW78750

Courtesy of FORD MOTOR COMPANY
