OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Passenger Seat Recliner Motor
Passenger Seat Recliner Motor

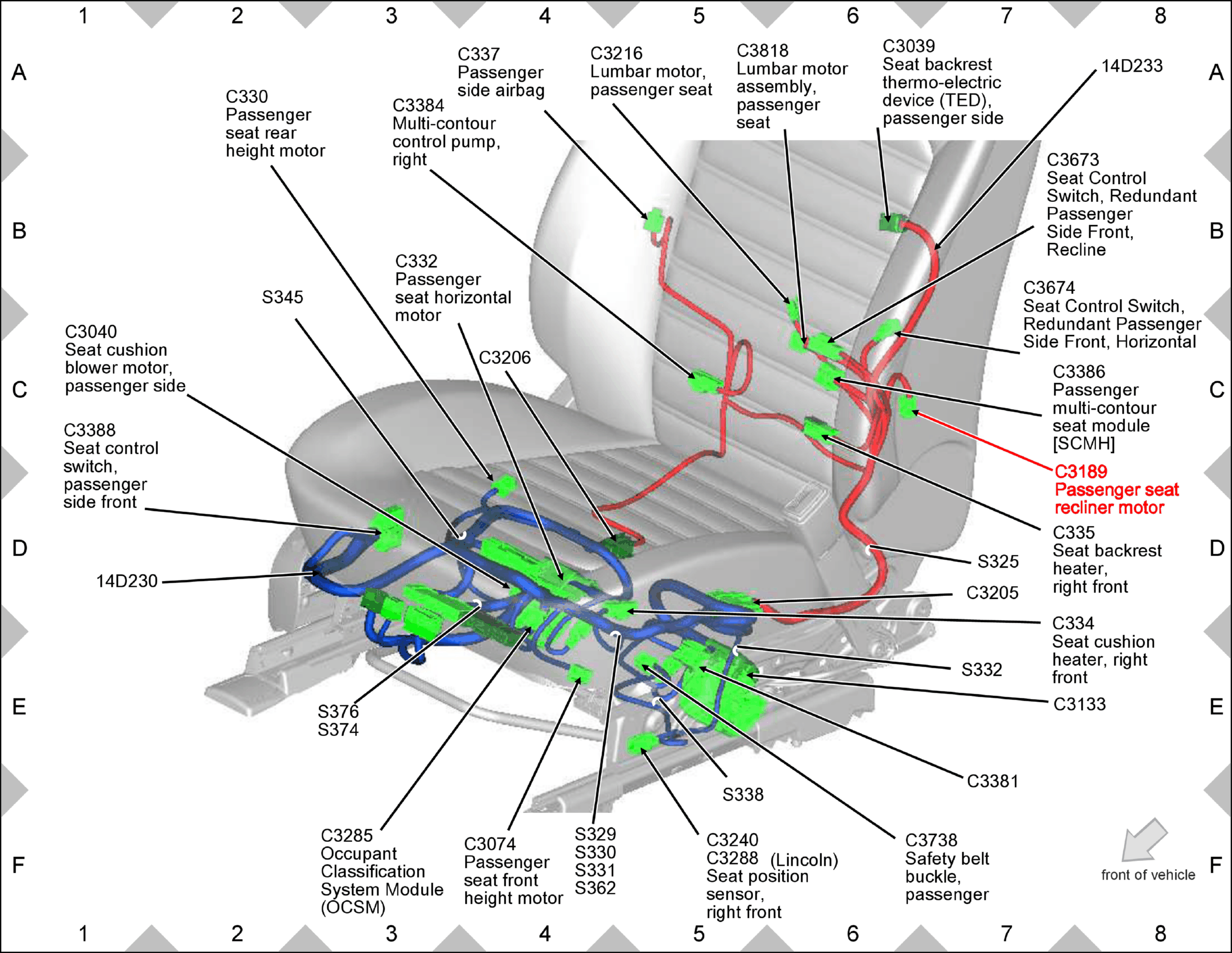

Fig 1: Passenger Seat Recliner Motor Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
