Passenger Multi-Contour Seat Module [SCMH]

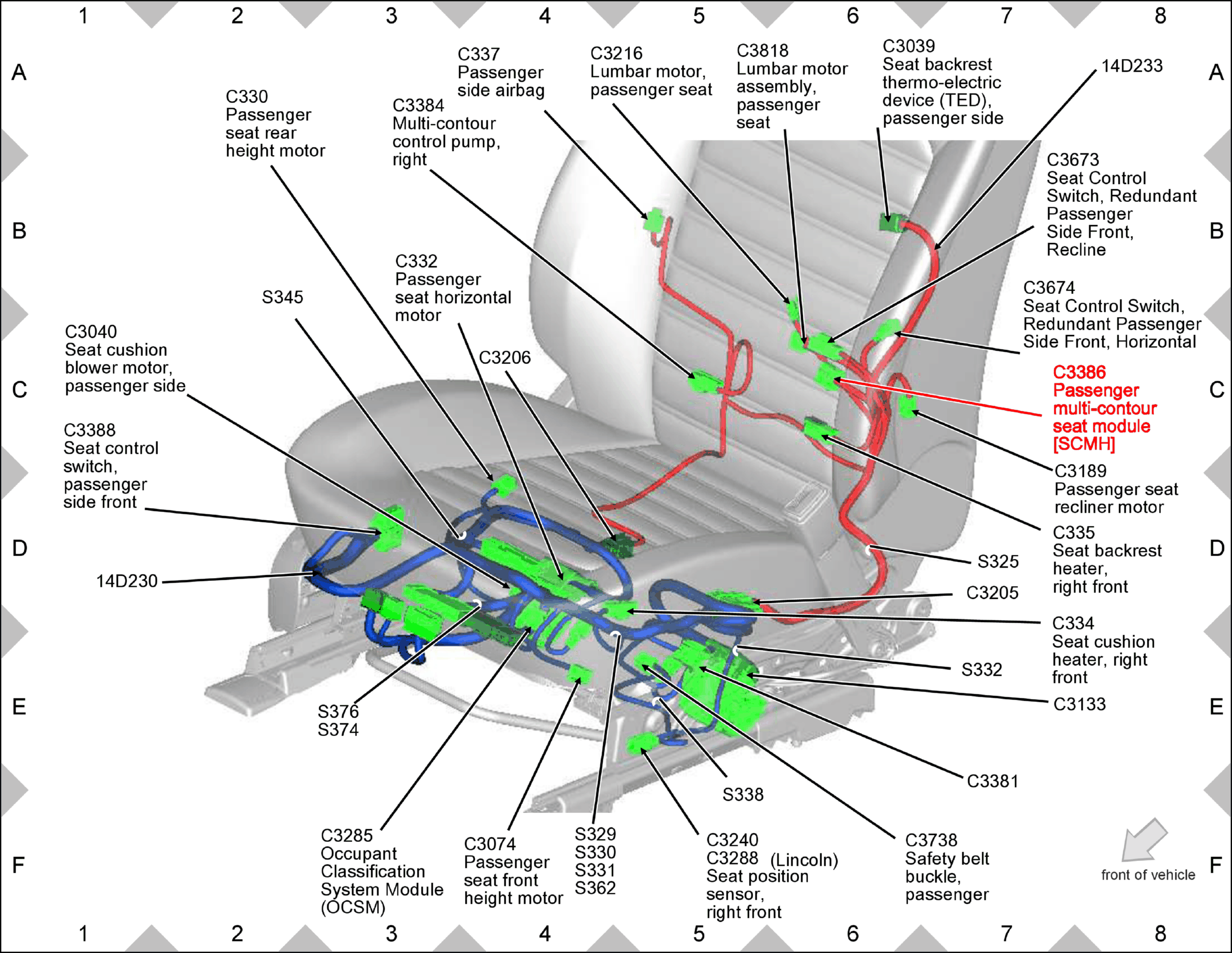

Fig 1: Passenger Multi-Contour Seat Module [SCMH] Components Location

GFDW78744

Courtesy of FORD MOTOR COMPANY
