Component Location Charts: Microphone

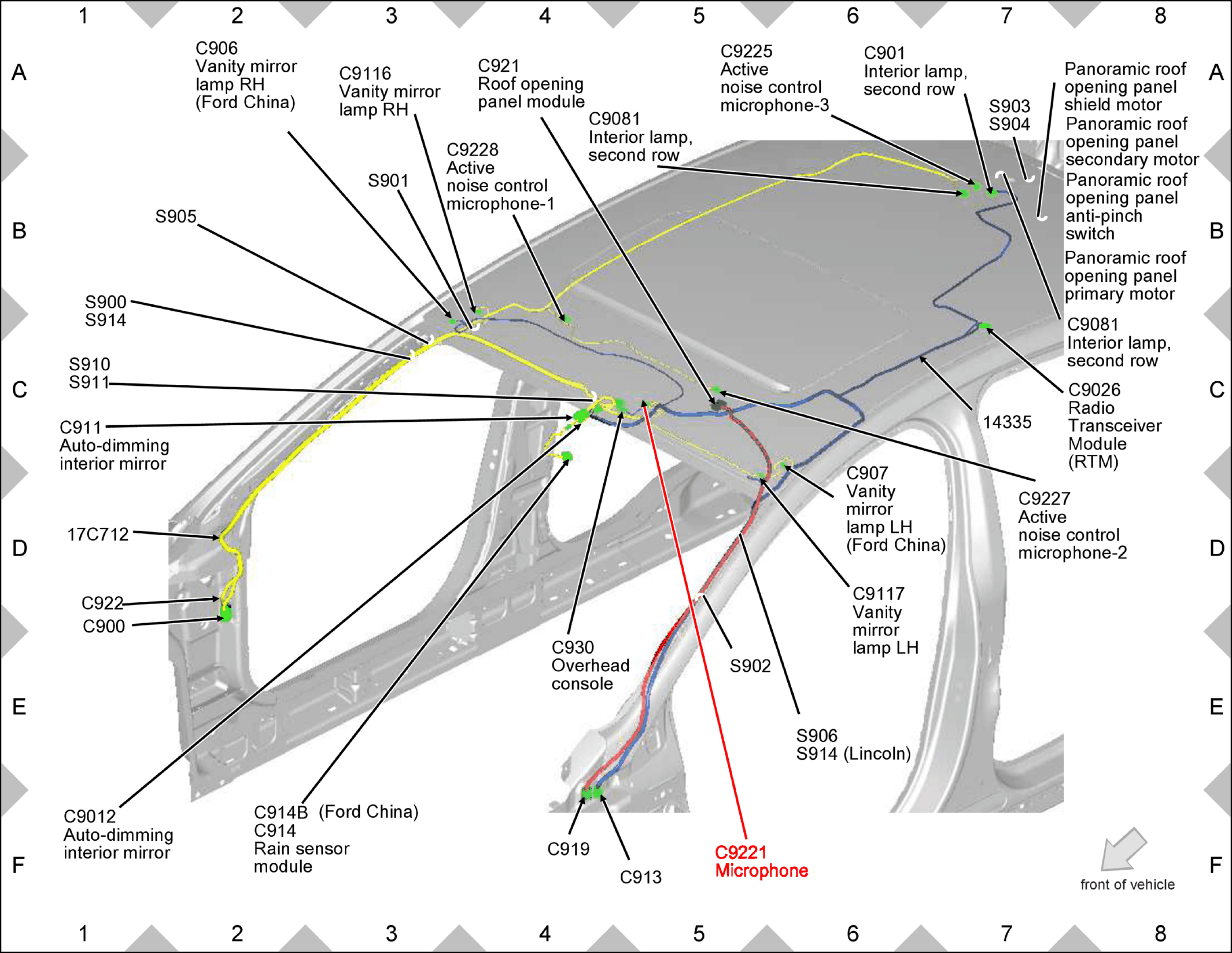

Fig 1: Microphone Components Location

GFDW78717

Courtesy of FORD MOTOR COMPANY
