Manifold Absolute Pressure/Intake Air Temperature 2 (Map/IAT2) Sensor (2.7L)

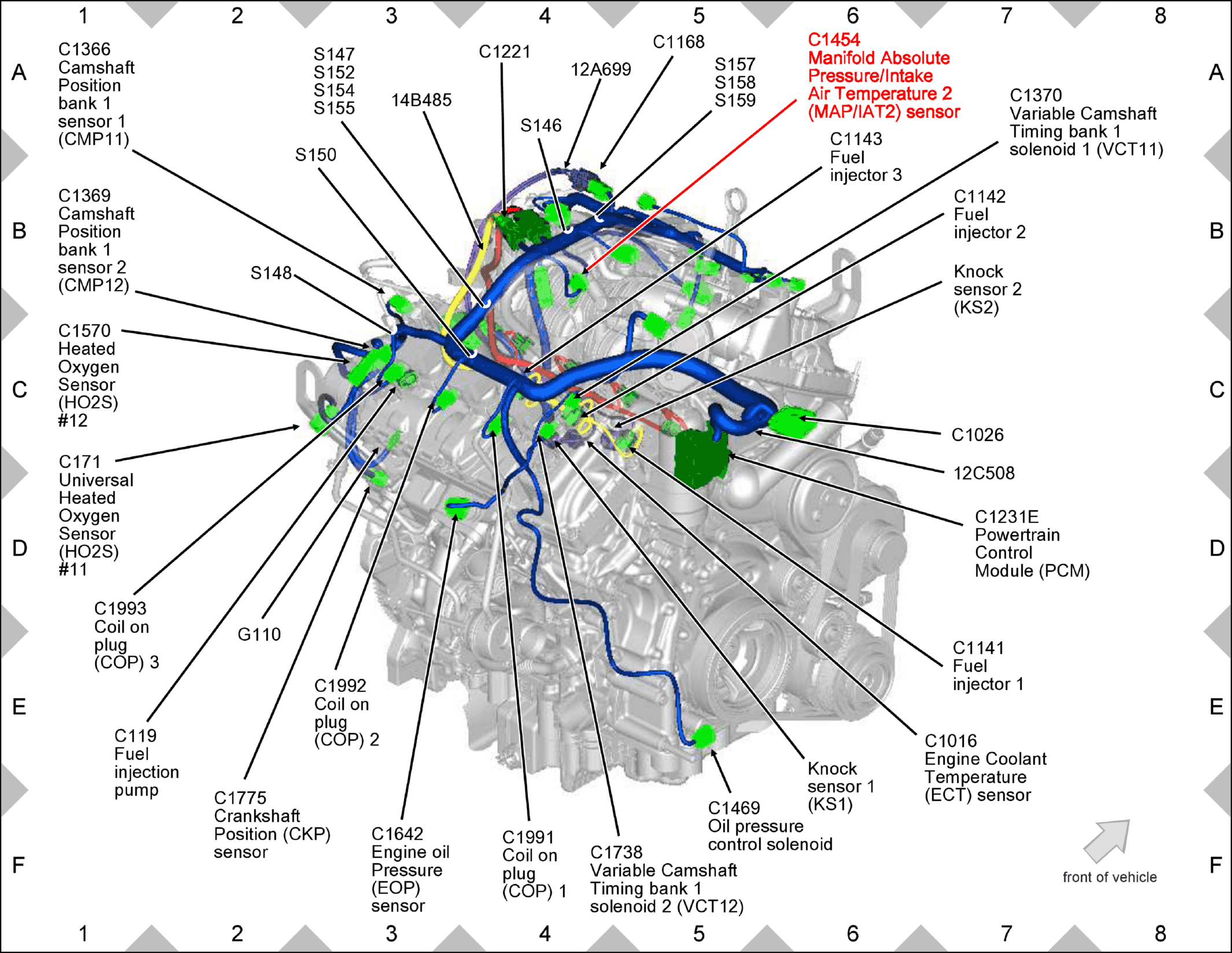

Fig 1: Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor (2.7L) Components Location
GFDW78711Courtesy of FORD MOTOR COMPANY
