Manifold Absolute Pressure And Charge Air Cooler Temperature (Map/CACT) Sensor (1.5L)

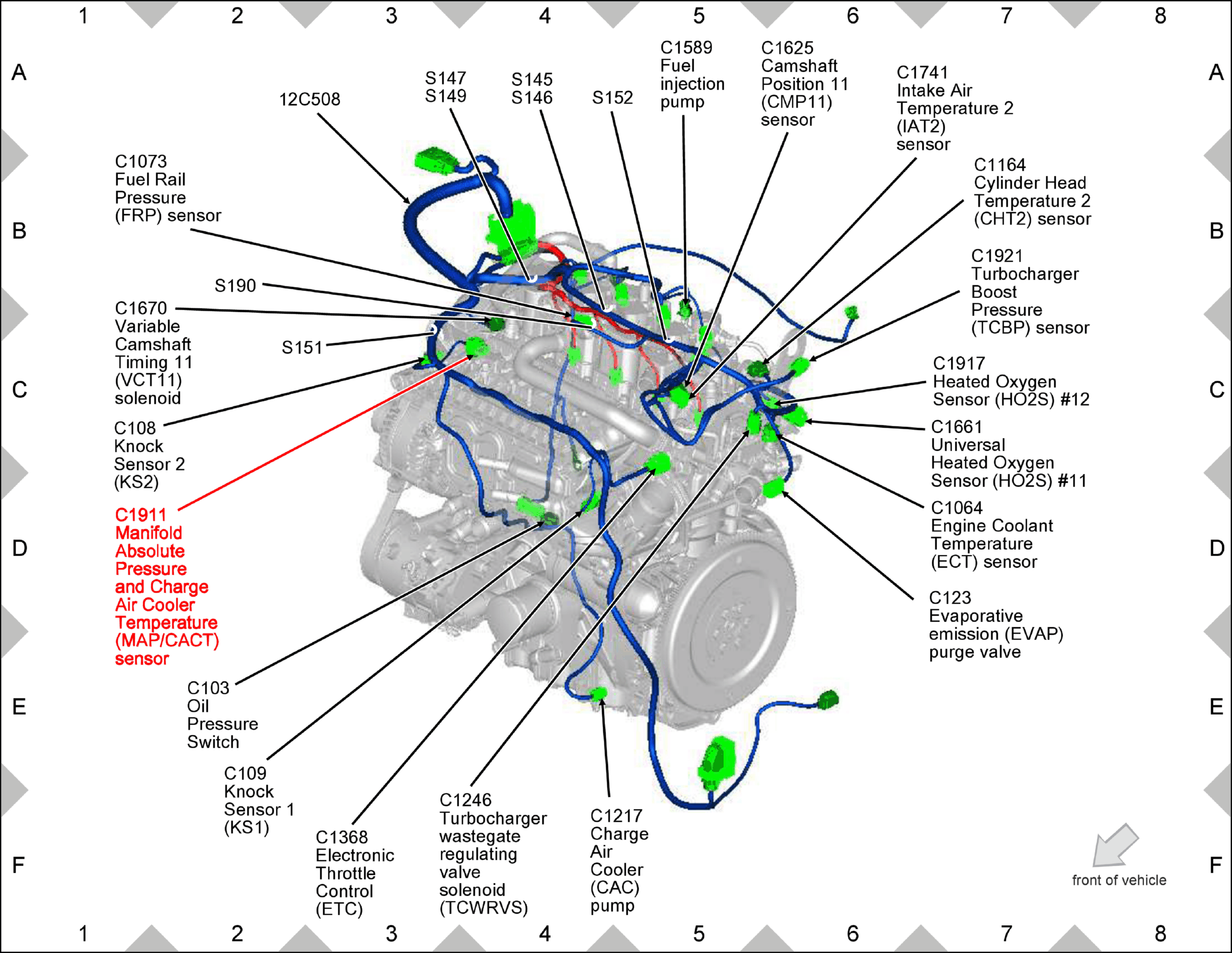

Fig 1: Manifold Absolute Pressure And Charge Air Cooler Temperature (MAP/CACT) Sensor (1.5L) Components Location
GFDW78714Courtesy of FORD MOTOR COMPANY
