OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Lumbar Motor, Passenger Seat
Lumbar Motor, Passenger Seat

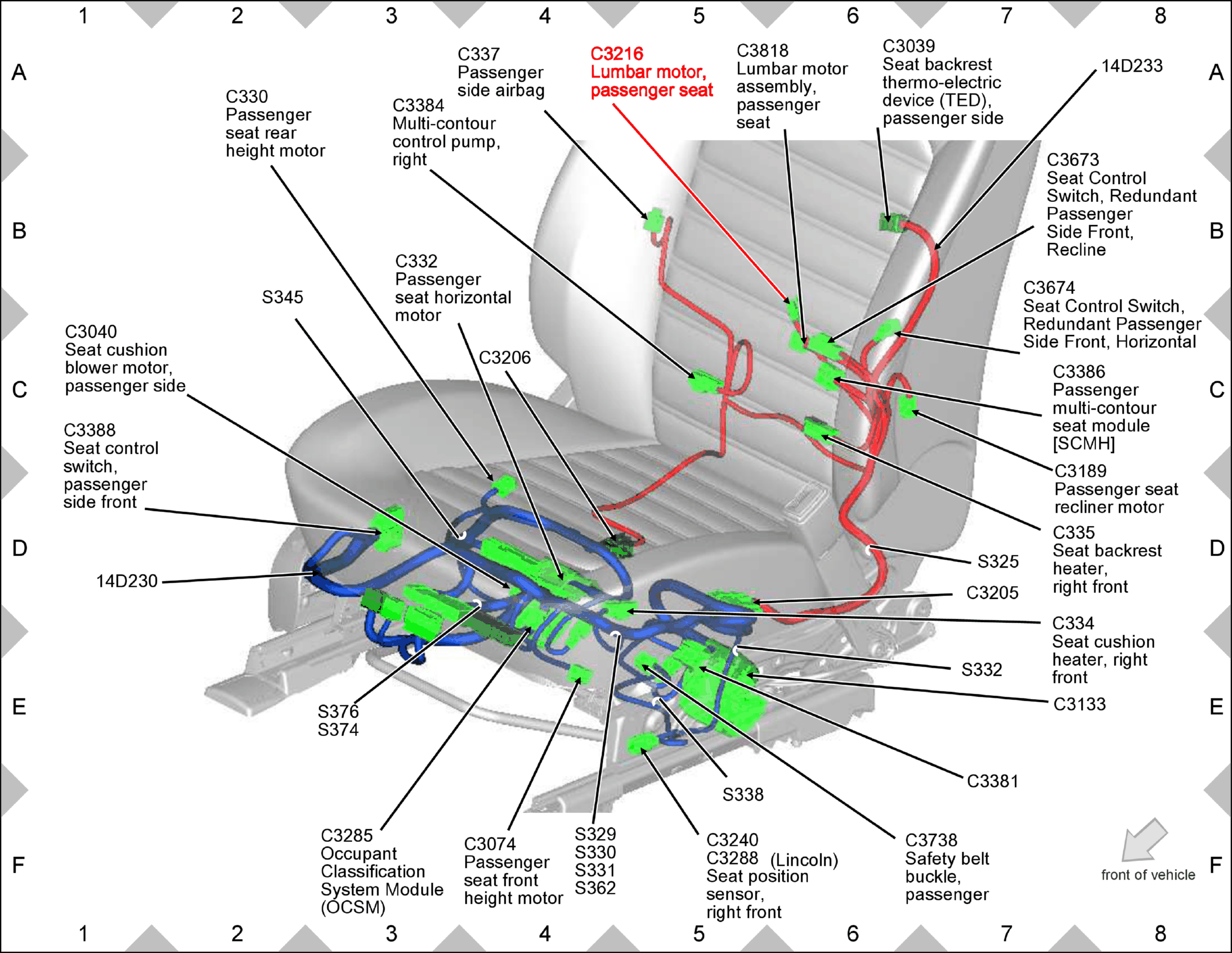

Fig 1: Lumbar Motor, Passenger Seat Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
