Lumbar Motor, Driver Seat

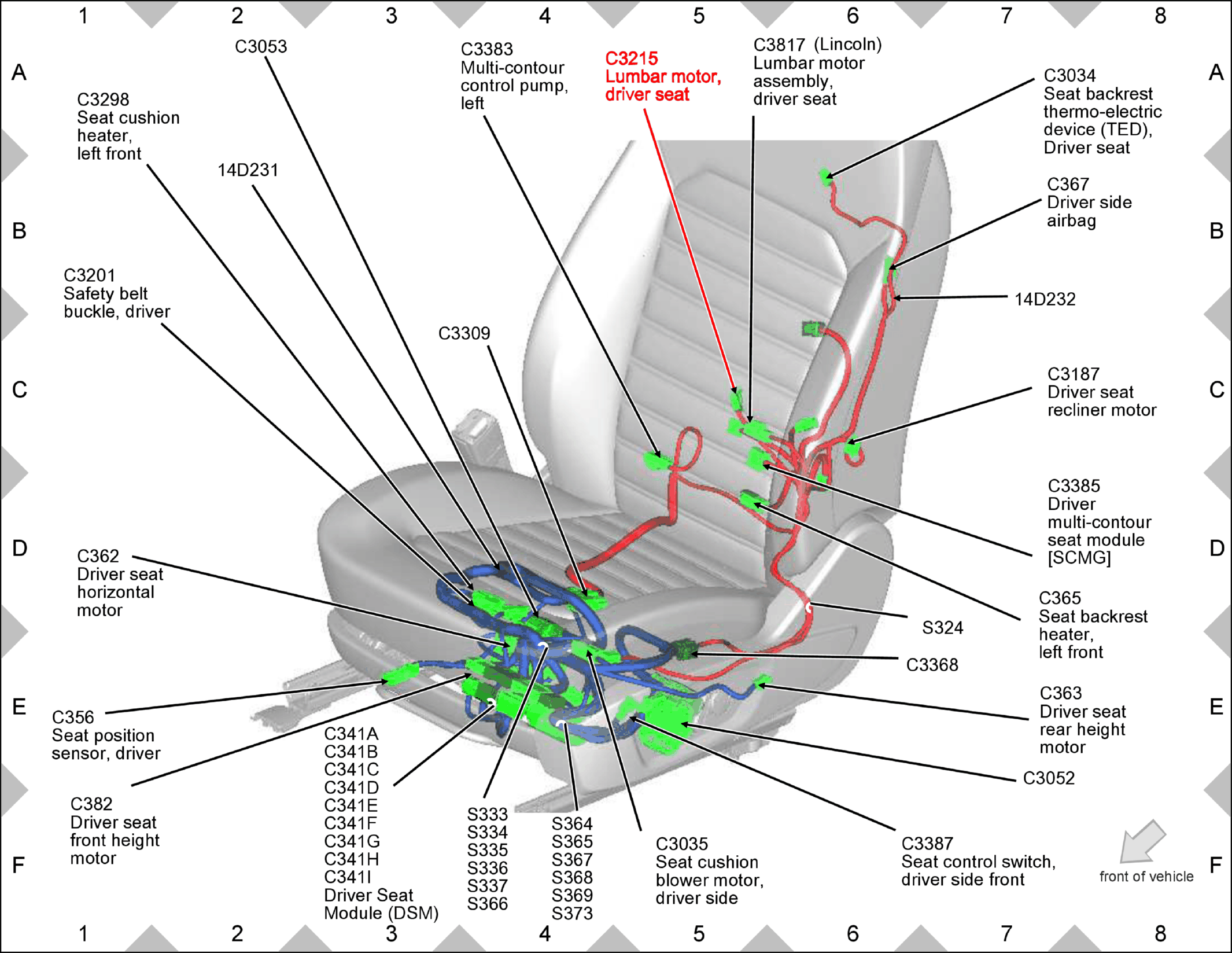

Fig 1: Lumbar Motor, Driver Seat Components Location

GFDW78706

Courtesy of FORD MOTOR COMPANY
