Lumbar Motor Assembly, Passenger Seat

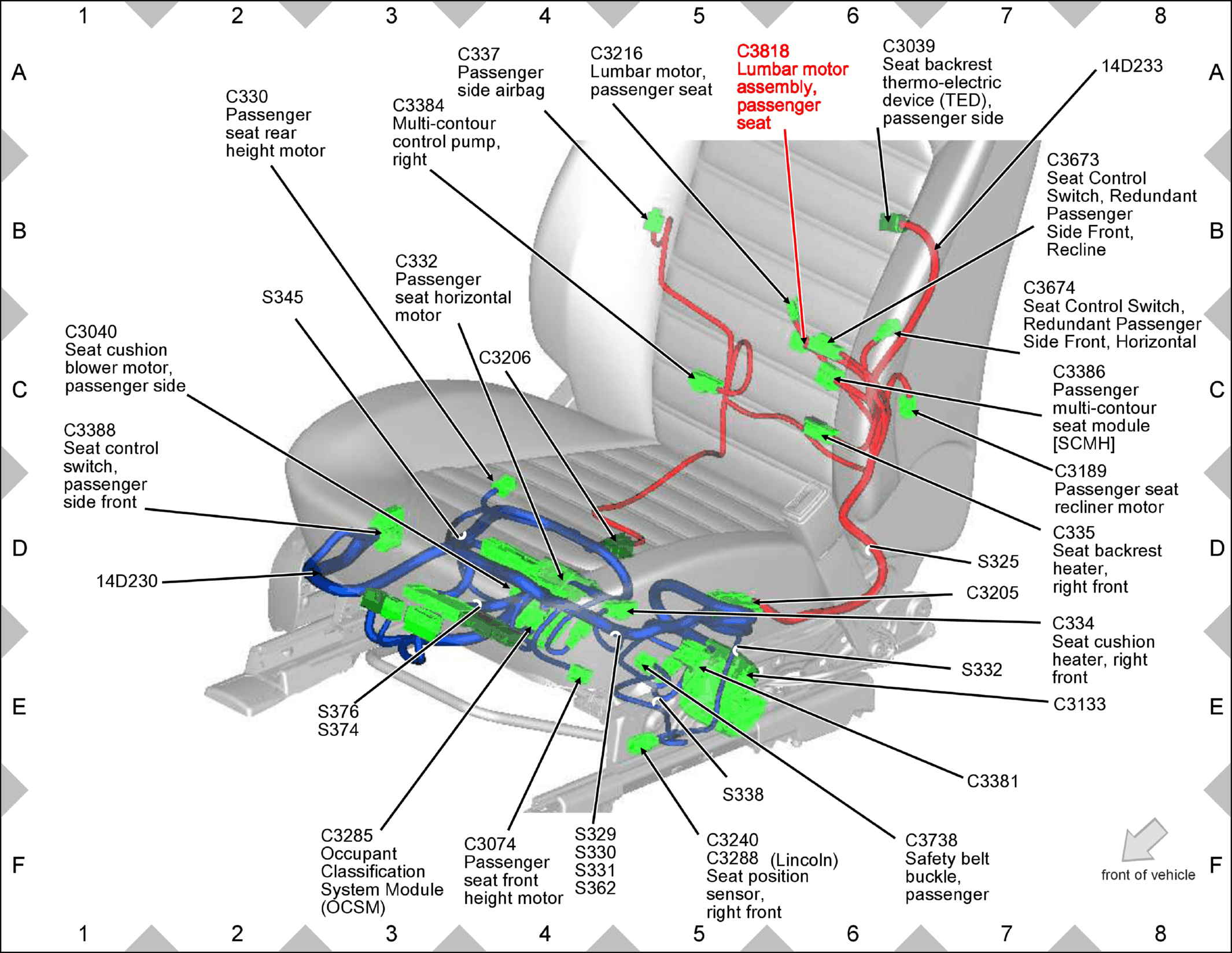

Fig 1: Lumbar Motor Assembly, Passenger Seat Components Location

GFDW78709

Courtesy of FORD MOTOR COMPANY
