OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Lumbar Motor Assembly, Driver Seat
Lumbar Motor Assembly, Driver Seat

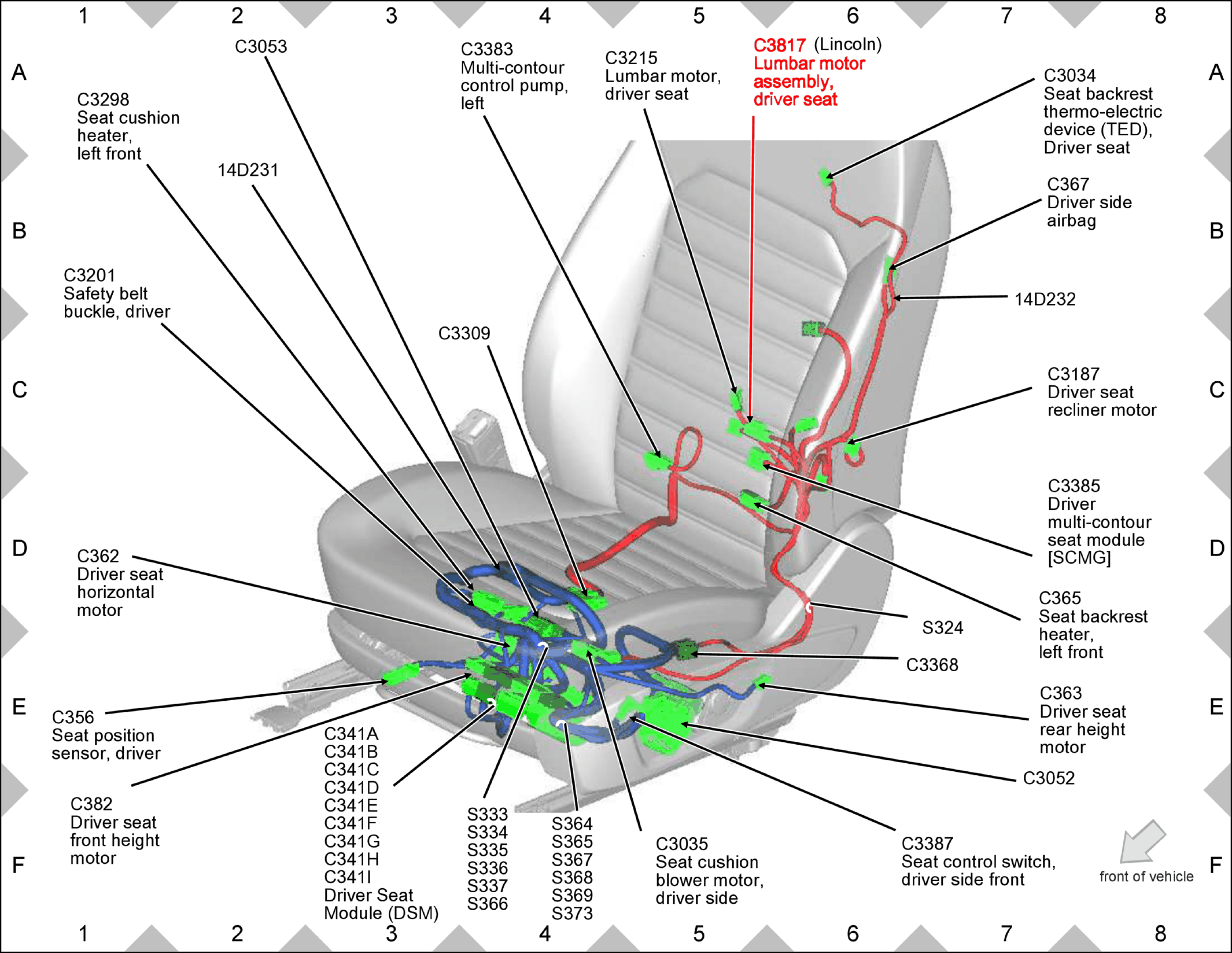

Fig 1: Lumbar Motor Assembly, Driver Seat Components Location
Courtesy of FORD MOTOR COMPANY
