Luggage Compartment Lid Latch
Luggage Compartment Lid Latch

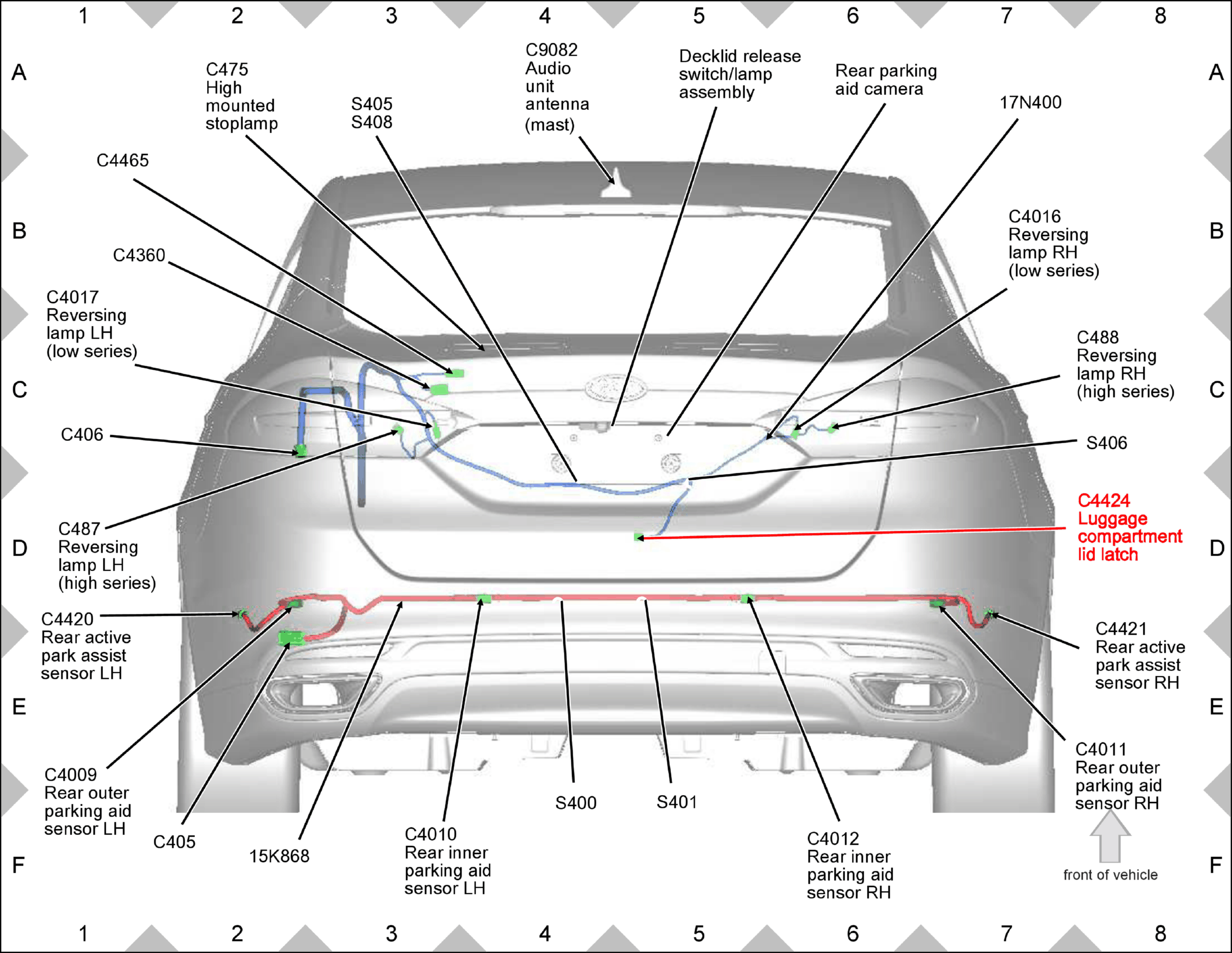

Fig 1: Luggage Compartment Lid Latch Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
