Low Washer Fluid Warning Indicator Switch

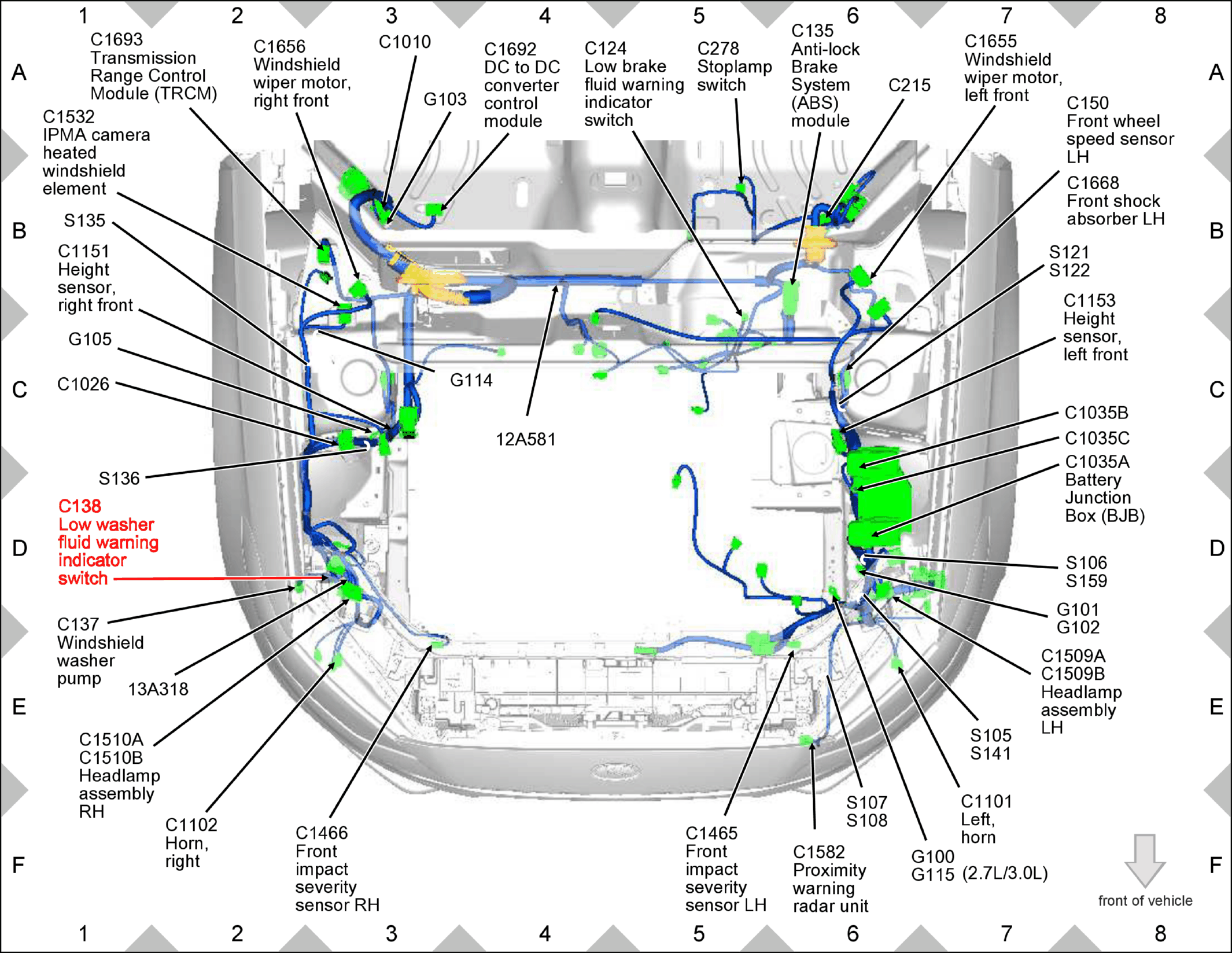

Fig 1: Low Washer Fluid Warning Indicator Switch Components Location

GFDW78696

Courtesy of FORD MOTOR COMPANY
