Lock Status Led LR

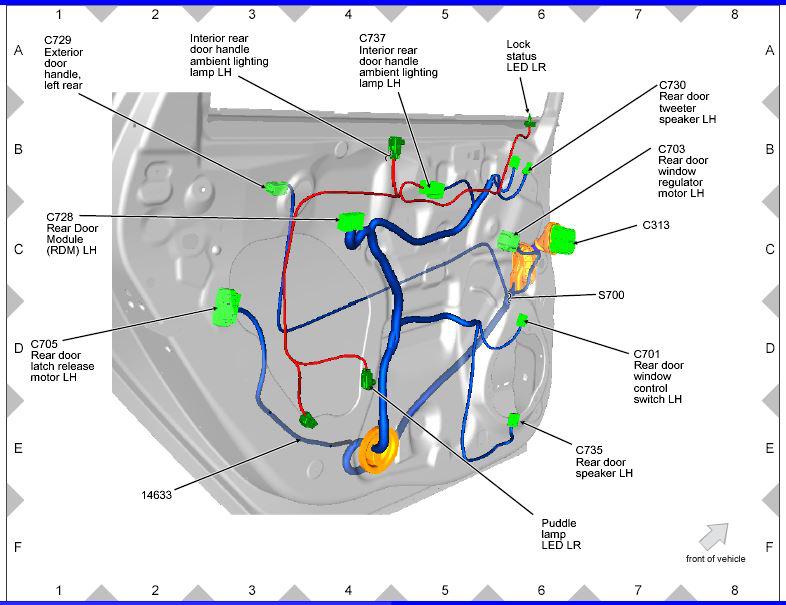

Fig 1: Lock status LED LR Components Location

G00580384

Courtesy of FORD MOTOR COMPANY
