OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Interior Front Door Handle Ambient Lighting Lamp RH
Interior Front Door Handle Ambient Lighting Lamp RH

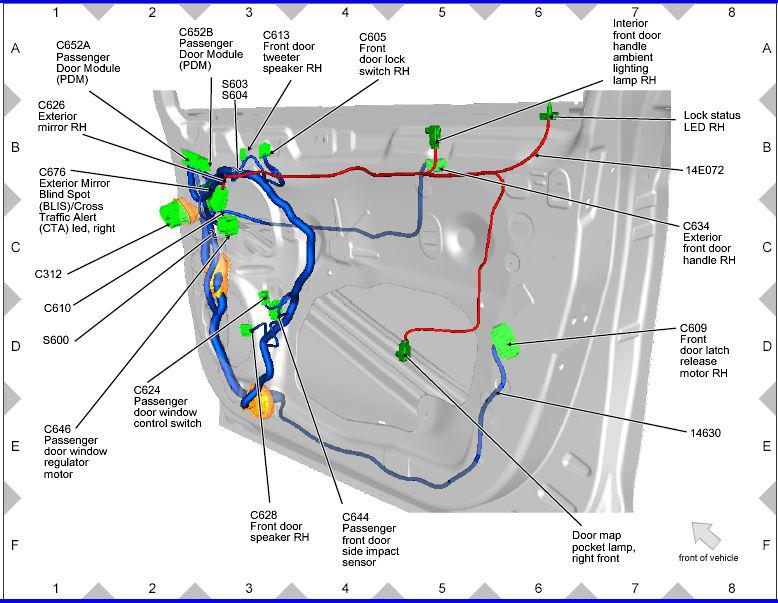

Fig 1: Interior Front Door Handle Ambient Lighting Lamp RH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
