Intake Air Temperature 2 (IAT2) Sensor (1.5L)

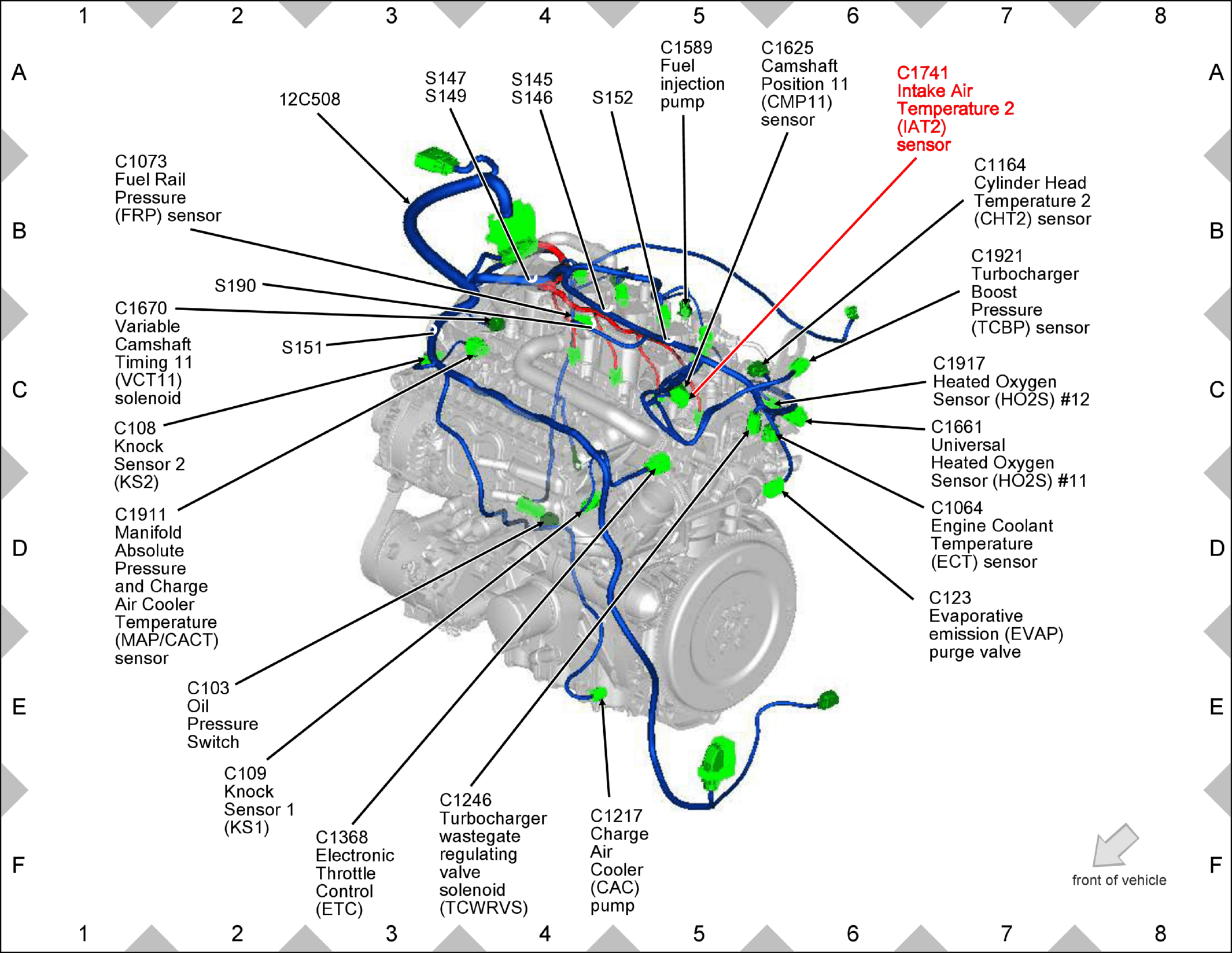

Fig 1: Intake Air Temperature 2 (IAT2) Sensor (1.5L) Components Location

GFDW78680

Courtesy of FORD MOTOR COMPANY
