In-Vehicle Temperature And Humidity Sensor

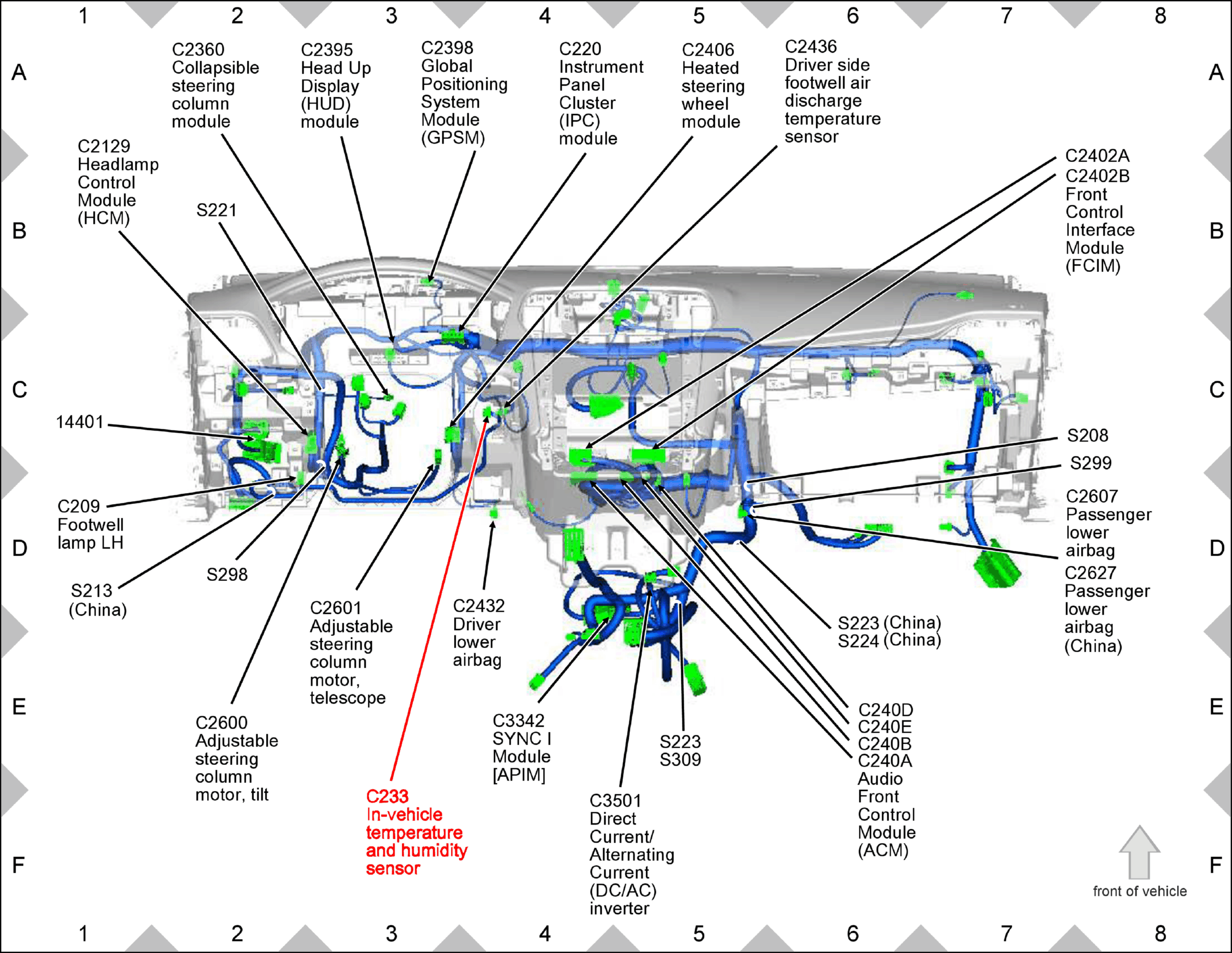

Fig 1: In-vehicle Temperature And Humidity Sensor Components Location
GFDW78673Courtesy of FORD MOTOR COMPANY
