High Current Battery Junction Box (BJB) (1.5L)

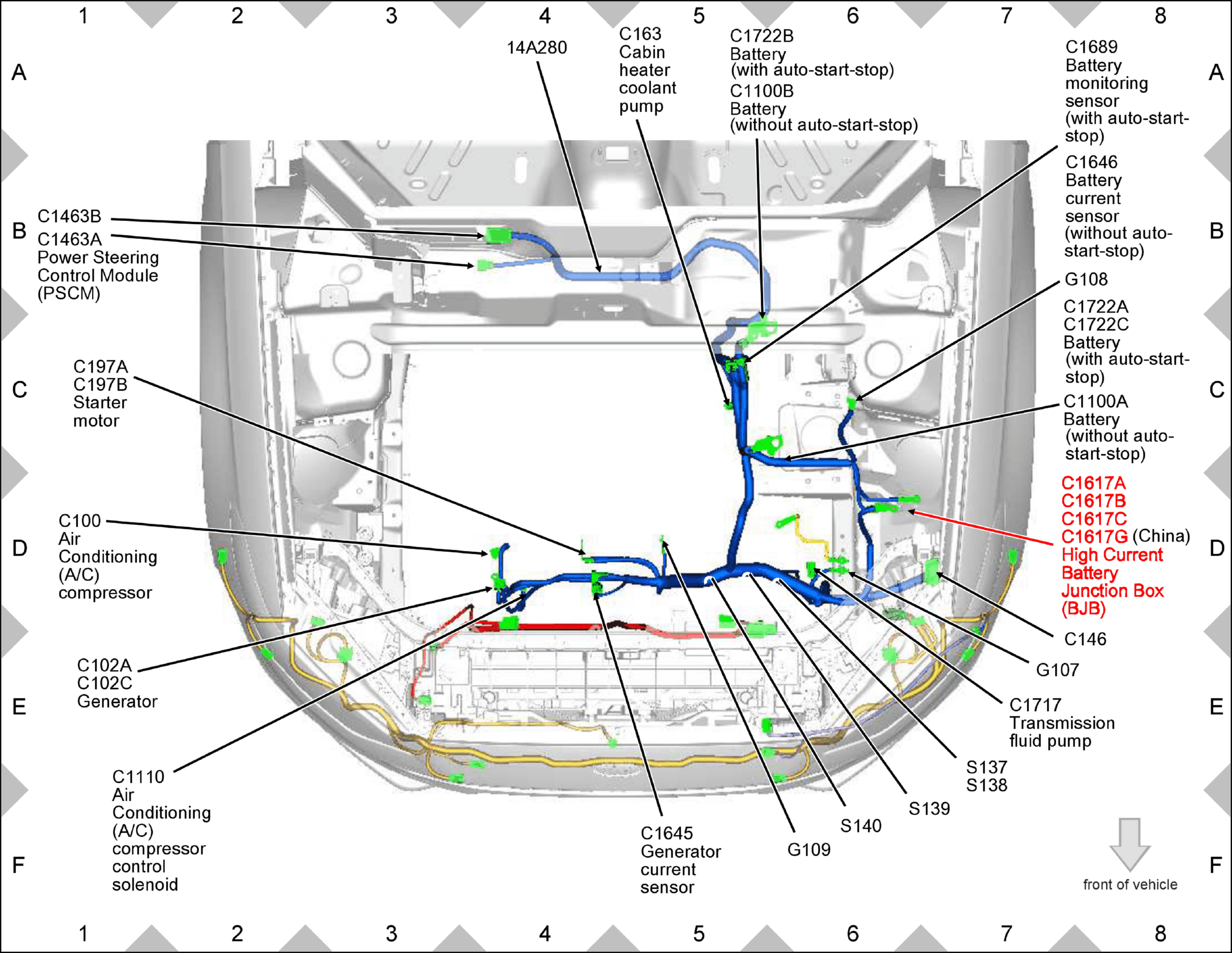

Fig 1: High Current Battery Junction Box (BJB) (1.5L) Components Location

GFDW78659

Courtesy of FORD MOTOR COMPANY
