Heated Seat Switch, Rear Seat

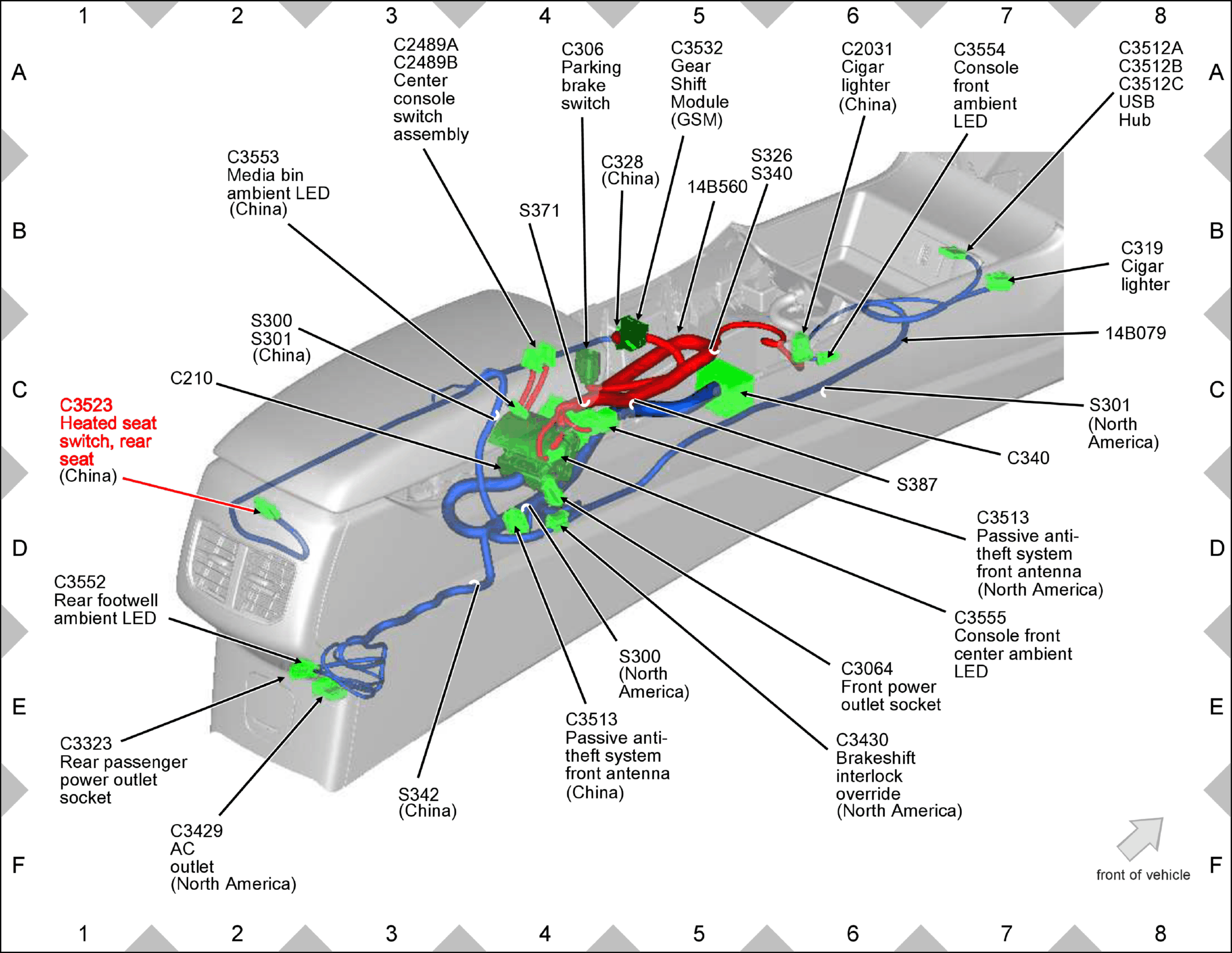

Fig 1: Heated Seat Switch, Rear Seat Components Location

GFDW78648

Courtesy of FORD MOTOR COMPANY
