Head Up Display (HUD) Module
Head Up Display (HUD) Module

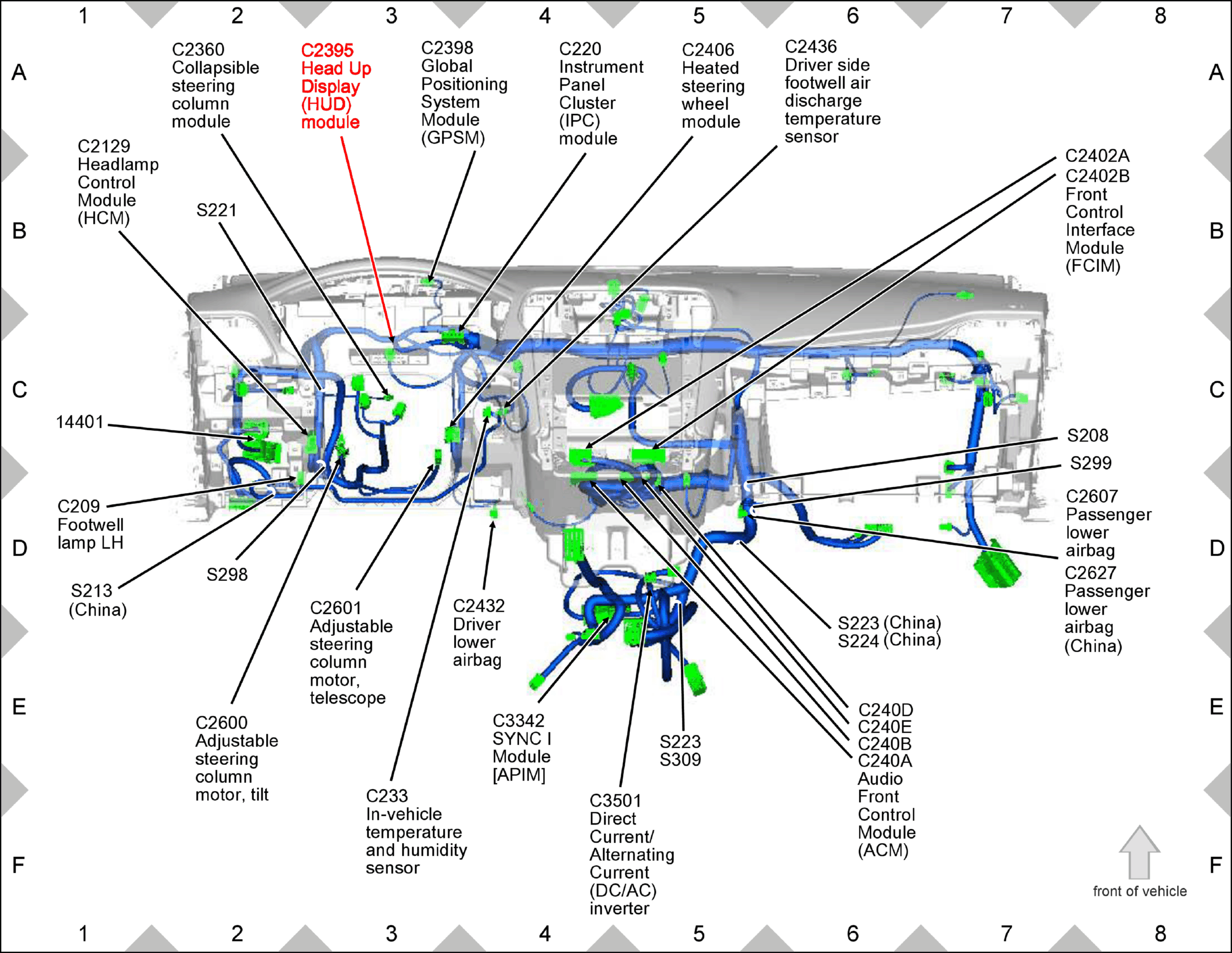

Fig 1: Head Up Display (HUD) Module Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
